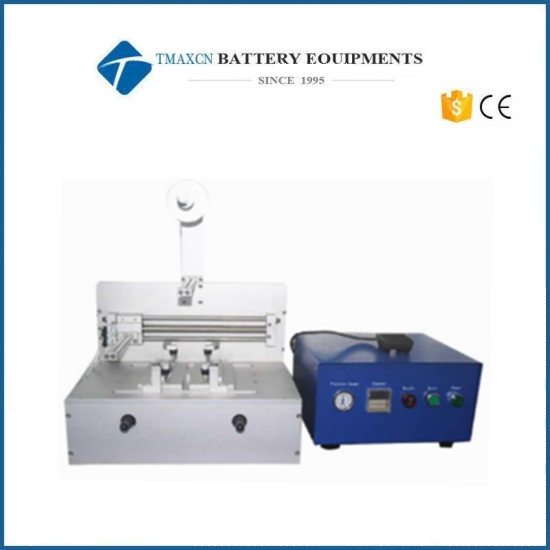

Desktop Electric Pouch Cell Electrode Sheet Stacking Machine With Digital Counter For Lab Battery Research

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

It is suitable for the stacking process of pouch cell. The positive and negative electrodes and separator are laminated or stacking in Z fashion.

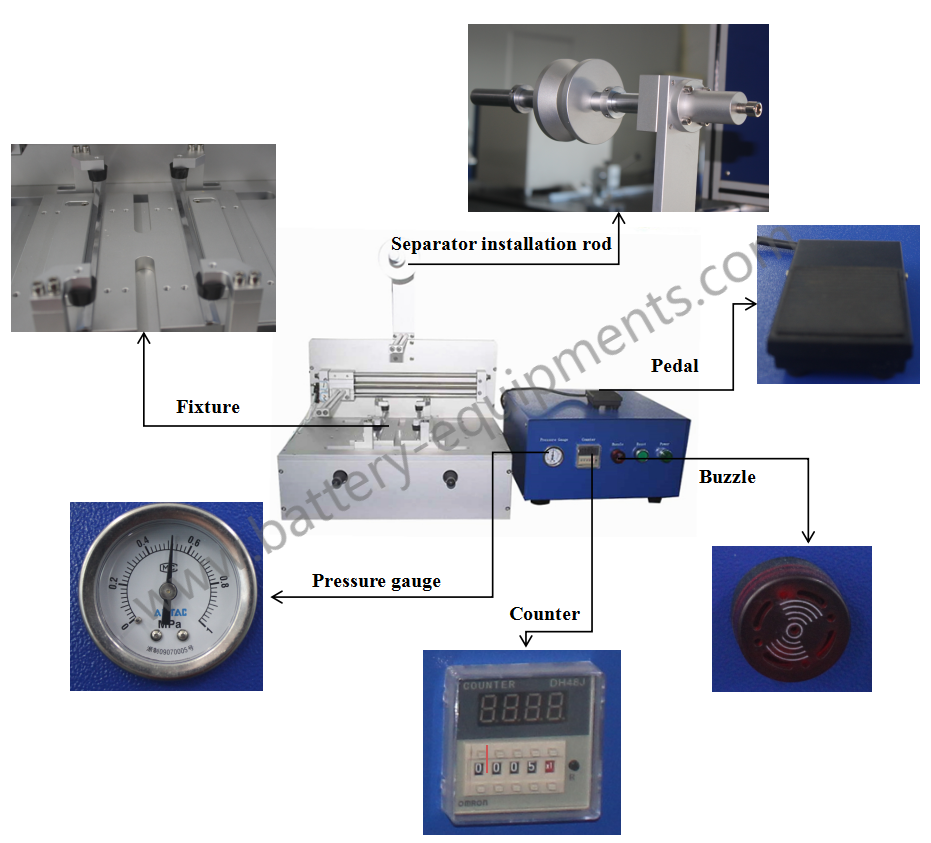

*Table type, can be placed on the ordinary desktop;

*The adjustment, operation and maintenance of the machine are simple and easy;

*It can be used in a wide range of laminations;

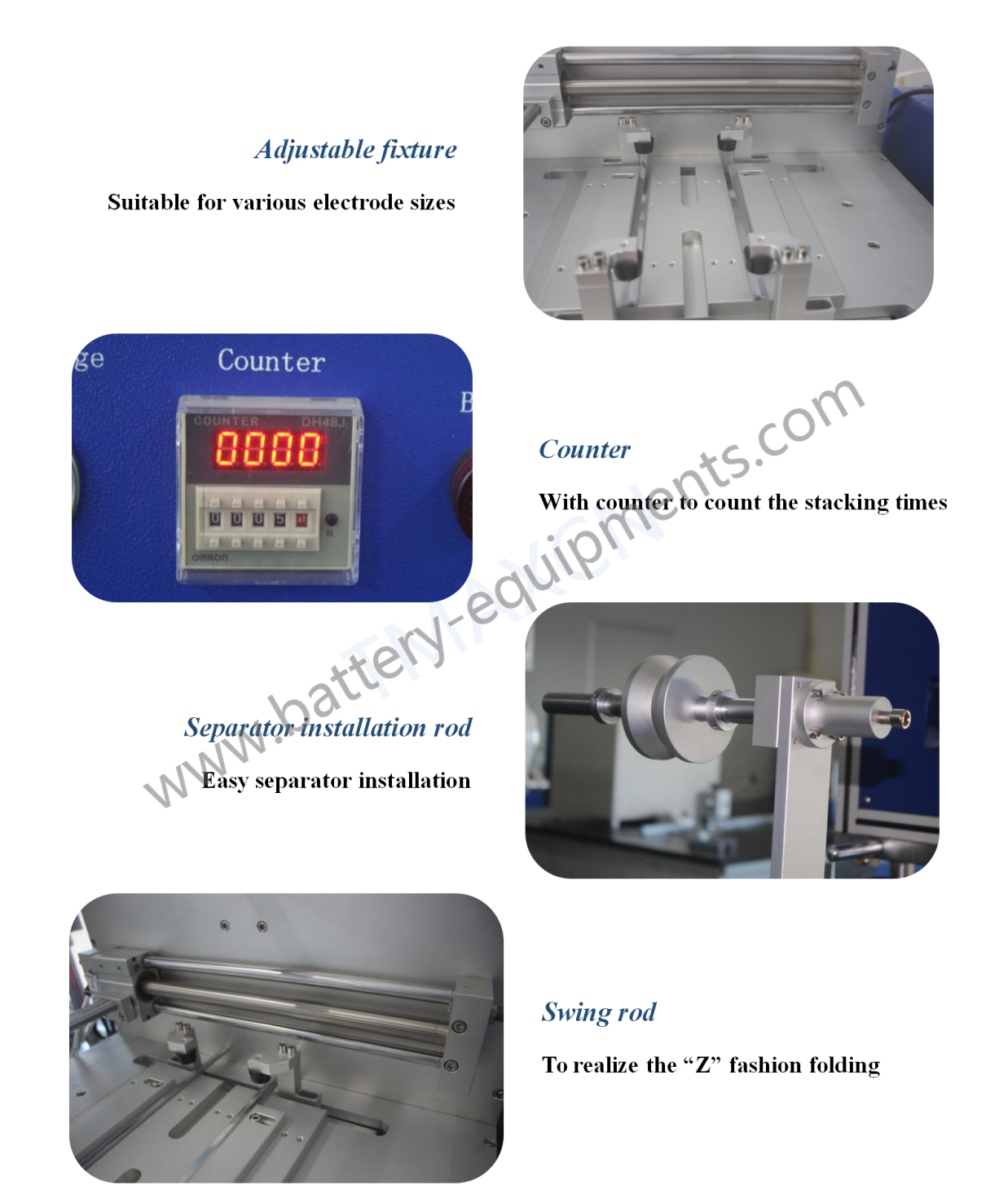

*High efficiency, with digital counter;

*Foot switch is used to control the action of air cylinder;

*The machine is small in size and beautiful in appearance;

Stacking mode	Z fashion
Suitable separator coil	Roll type separator, 3-inch roll core, max.φ200mm applicable
Applicable electrode size	Length:20～200mm Width: 20～200mm Thickness: within 18mm Larger model for apply larger electrode is also available
Swing rod travel distance	300mm；
Power supply	AC220/110V; 50/60Hz
Power	200W
Air pressure source	0.4MPa～0.7MPa
Machine dimensions	L650mmW400mmH700mm
Control box size	L200mmW300mmH380mm
Weight	30Kg
