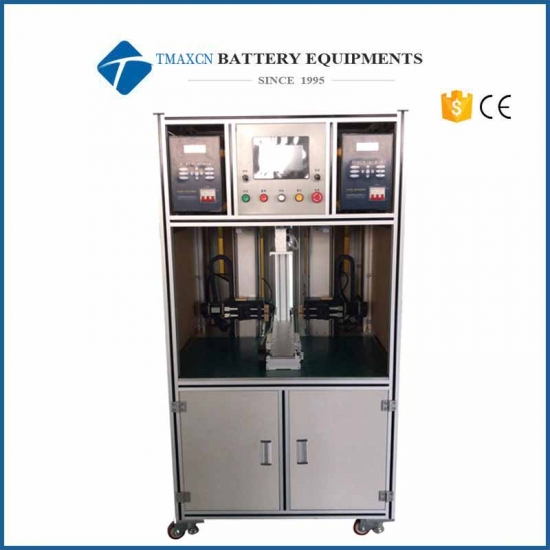

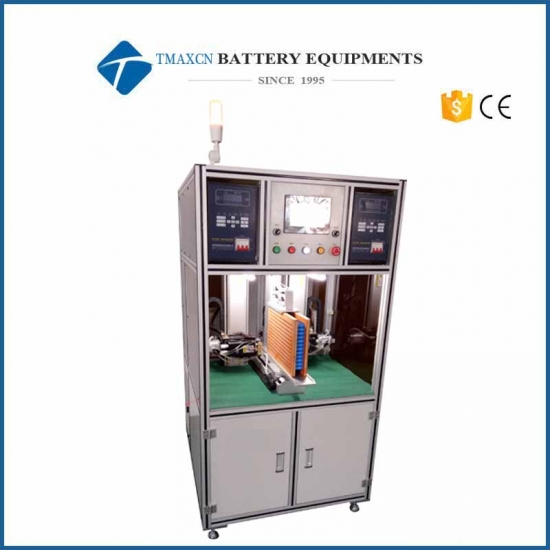

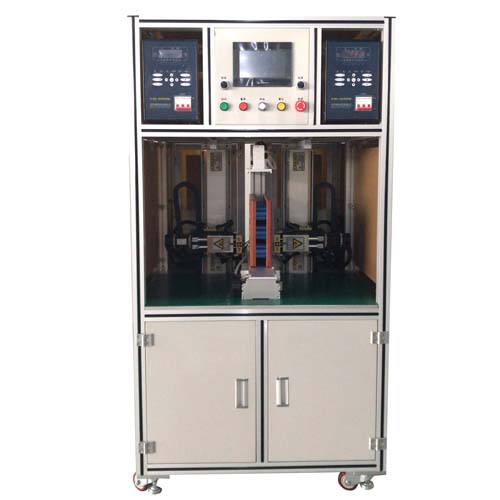

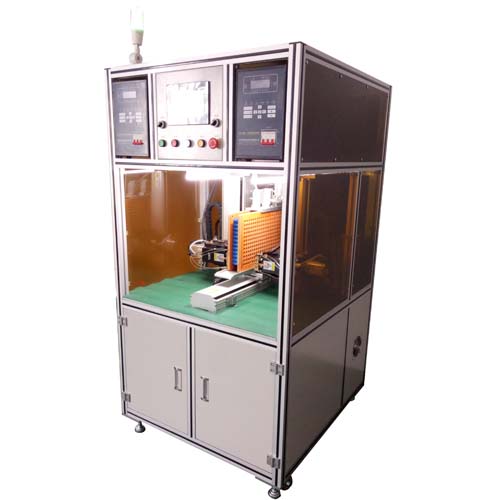

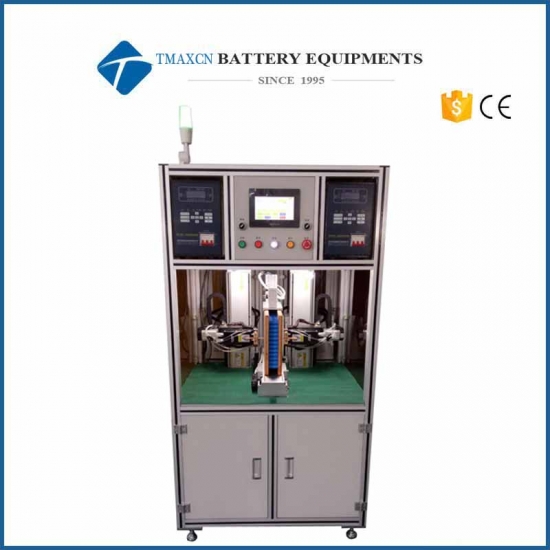

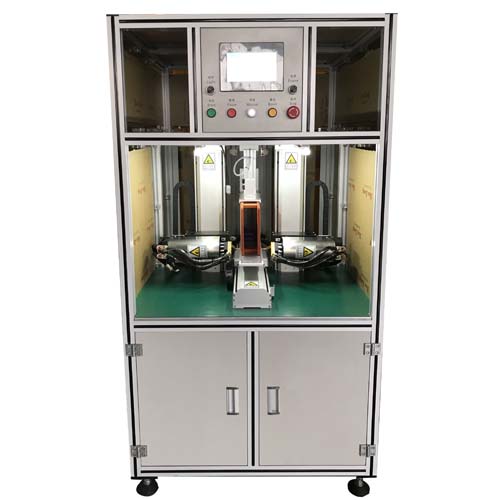

Double Sides Spot Welding Machine 18650 Battery Pack Numerical Control EV Cell Battery Welder
Model Number:
TMAX-DH-2001Type:
AutomaticDimension(L*W*H):
999 groupsNet Weight:
400kgCompliance:
CE certificateWarranty:
Two years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Double Sides Spot Welding Machine 18650 Battery Pack Numerical Control EV Cell Battery Welder
Fearures:
This machine is used for cylindrical battery pack automatic spot welding, it can weld both side together with high speed and good effect.
1. Support breakpoint start, support automatic start and manual start mode conversion.
2. It has a false spot welding and out of spot welding alarm function.
3. Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4. Welding needle replacement forecast reminder.
5. Own welding current monitoring system, real-time monitoring of welding current.
Advantages:
1. Welding stroke can be customized
2. Suitable for various kinds of battery pack
3. High speed welding
4. 7-inch touch screen, more convenient operation, clearer display
5. Welding head has air-cooling or water-cooling function, which can effectively reduce the influence of spot welding needle temperature on welding quality.
6. Can store up to 999 groups of files, the file issimple to call,
does not require complicated line changing process
7. One-key calibration function for total shift ofsolder joints, which can be calibrated for spot shift caused by changing the solder pin or other reasons
8. Electric or pneumatic spot welding machine is optional
Specifications:
Model |
TMAX-DH-2001 |
Y-axis travel |
500mm |
Z-axis travel |
350mm |
Spot welding speed |
0.3s / point; 5000pcs / h |
Maximum speed of motor drive |
1000mm/s |
The maximum number of batteries loaded |
300pcs (standard 18650 lithium battery) |
Number of groups for storing files |
999 groups |
Operating system |
Embedded system + man-machine screen |
Transmission |
Stepper + imported precision linear guide (optional servo + screw) |
Power supply |
Single-phase 220V ± 10% / 50Hz ± 10% |
Air supply |
0.3 ~ 0.4Mpa |
Weight |
400KG |
Dimensions |
900mm*1100mm*1800mm |
