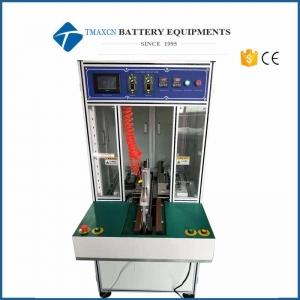

Edge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery Production

  • Model Number:

    TMAX300HH
  • Input Power:

    2.5KW
  • Dimension(L*W*H):

    L1950X W850 X H1800 mm
  • Net Weight:

    350Kg
  • Compliance:

    CE certificate
  • Warranty:

    two Year limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

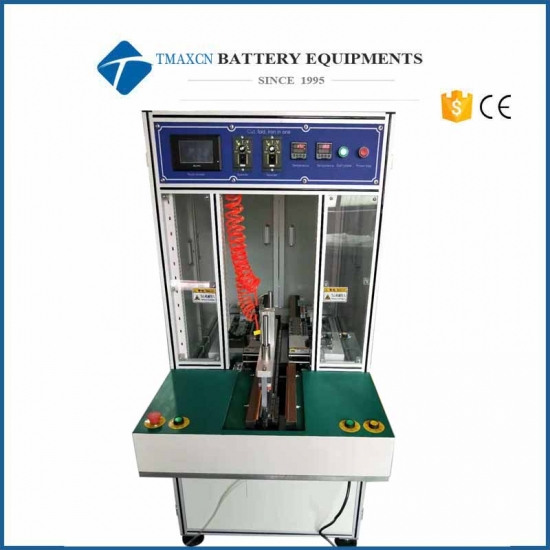

Edge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery Production


TMAX300HH is a three-in-one machine provides the continuous workflow for edge trimming, folding and ironing of extra large pouch cell cases without dedicated labor. This process is widely used in the final steps of pouch cell battery pilot-scale production line to ensure a smooth, neat and tidy casing edge.

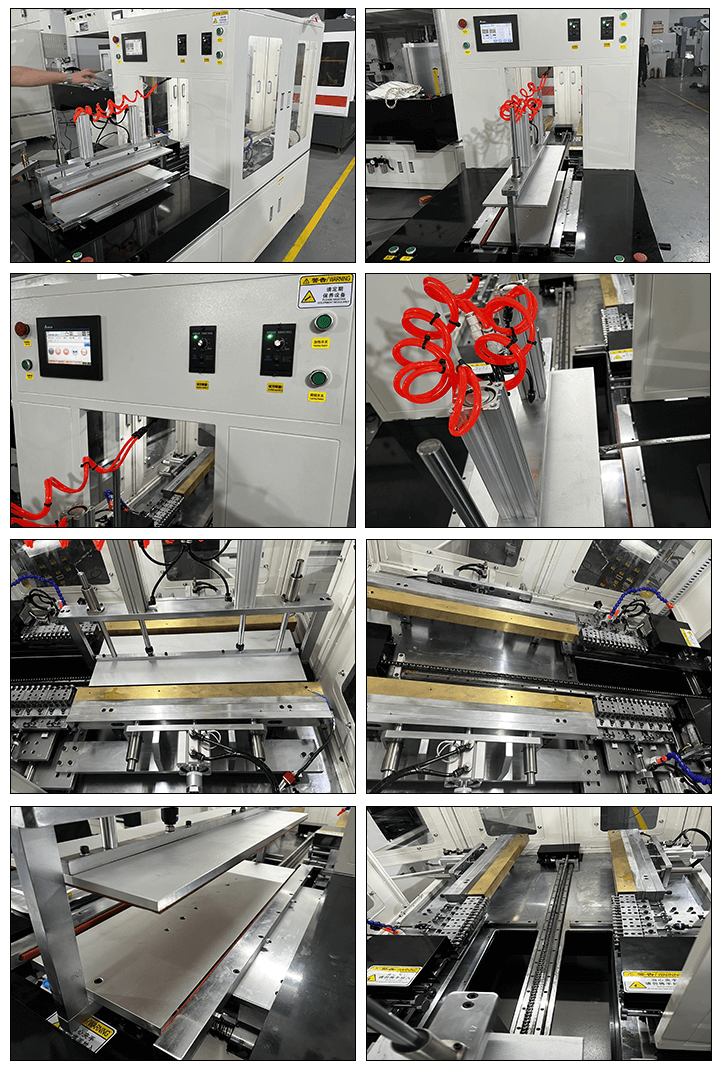

Ironing Module

 Edge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery Production

Trimming Module

 Edge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery Production

Folding Module

 Edge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery Production

Max. Power Consumption

2.5KW

Working Voltage

208-240 VAC, single phase

Compress Air Pressure

·         0.7 - 0.8 MPa (Each stroke will consume 0.09L air )

·         Note:Air Compressor is not included.

Size Info (Edge Ironing, Trimming & Folding Width/Length)

·         Cell length: 10~580mm

·         Cell width: 10~240mm

·         Cell thickness: 2~12mm

Temperature Info

Ironing Temperature: 0-250 adjustable

Dwell Time

0-99 seconds adjustable

Productivity

160~220 pcs / hr (Expected lifespan of Trimming blade ~ 1 million times)

Trimming accuracy

+/-0.1mm

Working Modes



· Continuous workflow for edge trimming, folding and ironing of extra large pouch cell cases (manual cases loading is needed)

· Linear sliding rail for easy manipulation of trimming, folding and ironing modules.

Edge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery Production

Edge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery Production

How to use this Tool



When the pouch cell is fabricated, an uneven edging excess is expected. In order to make a neat and tidy cell with smooth edge just like the commercial pouch batteries, please follow the steps in below:
Step 1. The trimming module will cut off the excess area of the casing edge, only leave the size appropriate for the edge folding and ironing
Step 2. The ironing module will smooth the edge prior to the folding
Step 3. The folding module will partially fold the edge
Step 4. The ironing module will smooth the folded section again and then iron the longer section against the sides of the case. Now a neat and tidy cell is finished.

Edge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery Production

Edge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery ProductionEdge Ironing Trimming and Folding Machine Three-In-One for Pouch Cell Case Battery Production

Product Dimensions

L1950X W850 X H1800 mm

Net Weight

350Kg

Warranty

Two Years limited warranty with lifetime support.
