Electric Heat Rolling Press Machine Calender Machine with Variable Speed

  • Model Number:

    TMAX-Jk100
  • Type:

    Rolling Press Machine
  • Dimension(L*W*H):

    400*250*360mm(L*W*H)
  • Net Weight:

    90kg
  • Warranty:

    Two years warranty,one stop service,provide full solutions
  • Delivery Time:

    3 Days
contact now
DESCRIPTION

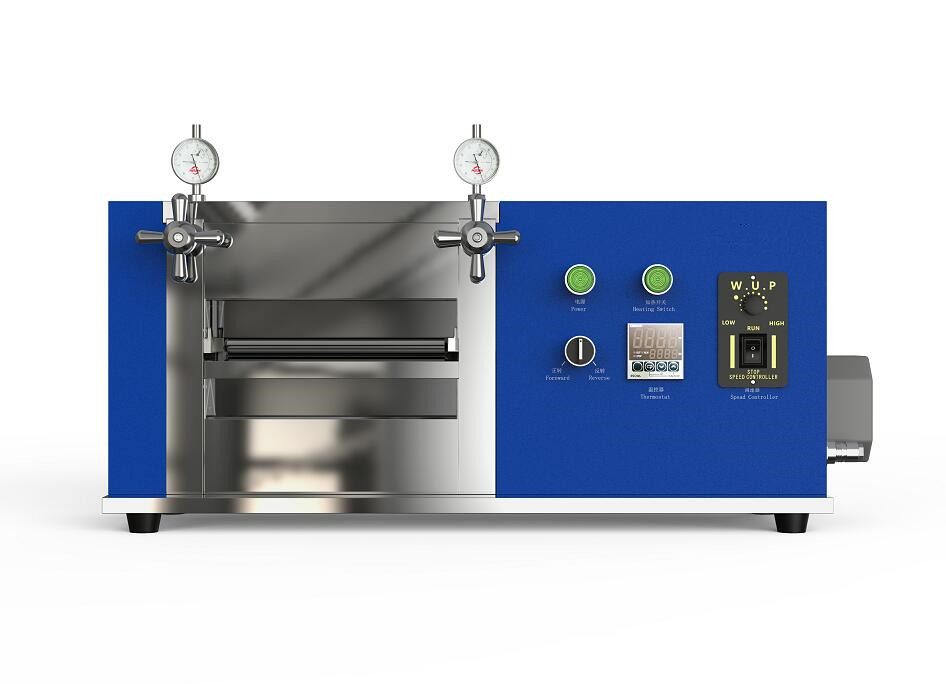

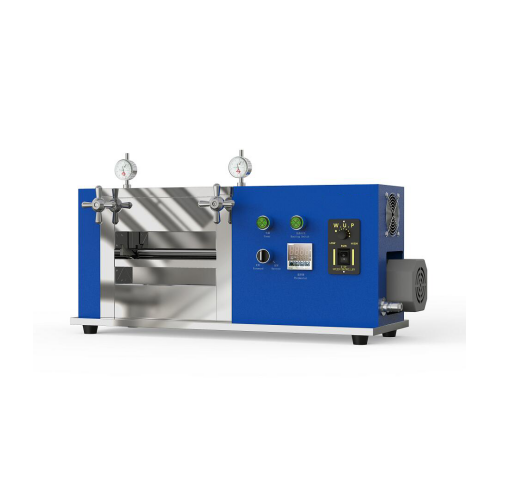

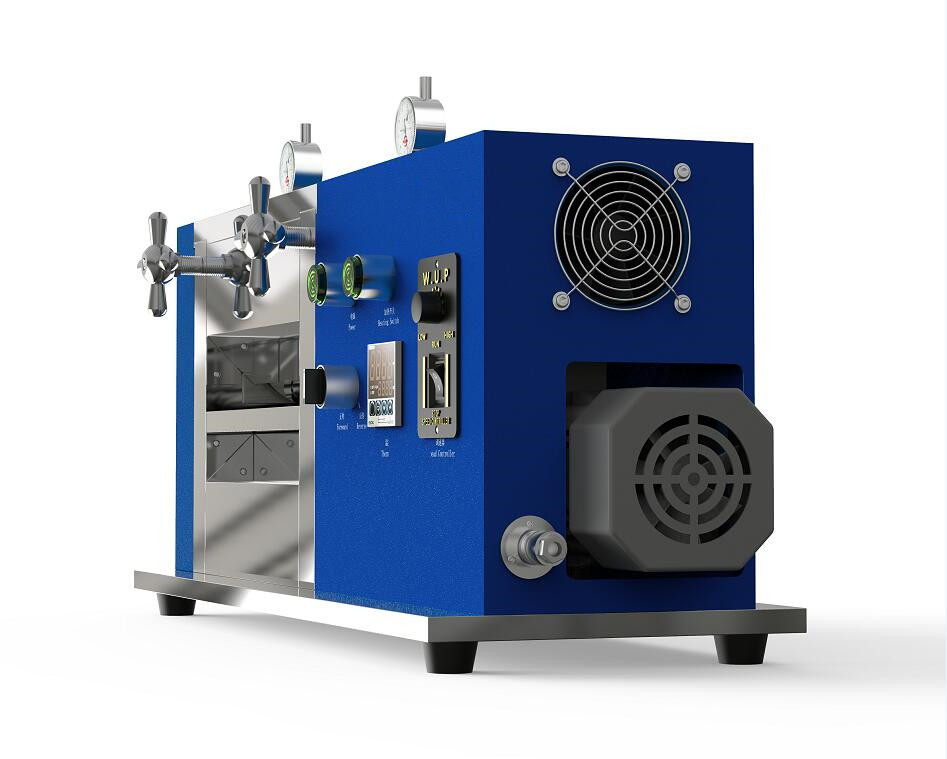

Electric Heat Rolling Press Machine Calender Machine with Variable Speed

TMAX-Jk100 Hot rolling press machine is mainly applied to laboratory battery materials, a small amount of gold and silver and other precious metals, copper and other nonferrous materials at a certain temperature, electric hot rolling, rolling thickness adjustable, easy to operate. Particularly suitable for clean energy materials lithium plate thinning and increased density.


SPECIFICATIONS:

ITEM

Unit

Data

Size(L*W*H)

mm

400*250*360mm(L*W*H)

Weight

kg

90kg

Roll length

mm

100-400

Roll width

mm

100-300

Calendering thickness

mm

0~3

Dial Gauge Accuracy

mm

0.01

Rolling Speed

mm/sec

0~10

Roller Surface Max. Tem

°C

130

Surface hardness of rollers



HRC60-62

Total Power



AC110-220V,720W


electric heat roller press

electric heat roller press

electric heat roller press

electric heat roller press

electric heat roller press

Rolling Press Machine


 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
