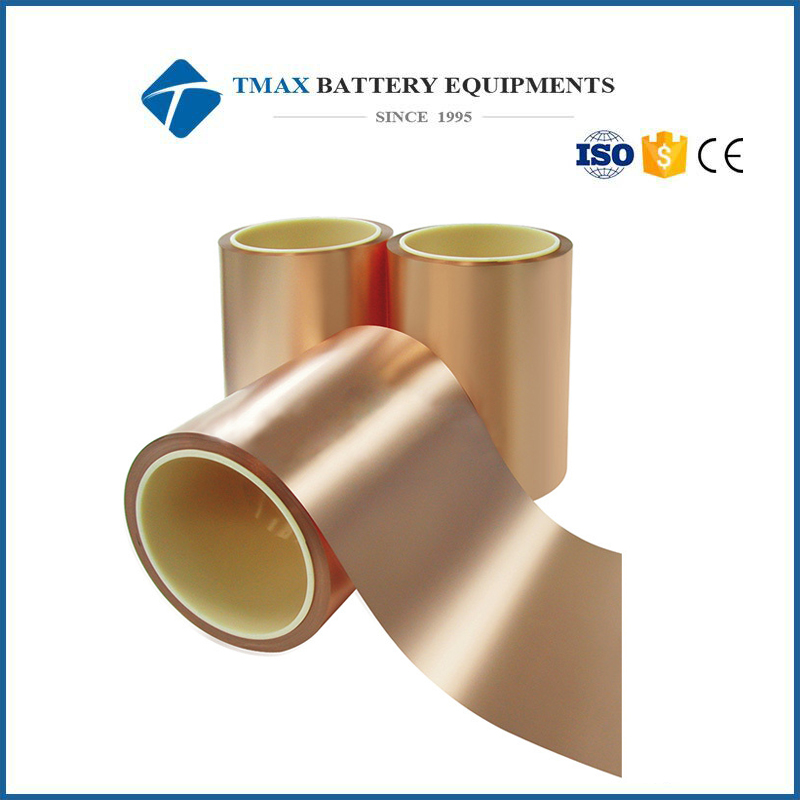

Electrolytic Copper Cu Foil For Li-ion Battery Raw Materials

  • Model Number:

    TMAX-Cu-08
  • Dimension(L*W*H):

    6-25 um Thickness
  • Compliance:

    CE certificate
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now
Email:David@battery-equipments.com
Wechat:13506084915
DESCRIPTION

Electrolytic Copper Cu Foil For Li-ion Battery Raw Materials


SPECIFICATION

Item

TMAX-Cu-08

TMAX-Cu-10

TMAX-Cu-12

width (mm)

customized

Thickness (um)

8

10

12

areal density (g/m2)

85-90

95-100

105-110

Purity(%)   More than 99.9%

Cu ≥99.9%

Fe < 0.0010%

Bi < 0.00020%

Pb < 0.0005%

Roller core inner diameter

76mm

Width

200mm

Tensile strength (MPa)

≥294

≥300

≥305

Normal elongation(%)

2.5

2.7

3.0

High temperature Tensile strength180℃(MPa)

≥147

≥150

≥153

High temperature elongation180℃(%)

2

2

2.5

Anti oxidization(180℃ Heating 1h)

No oxidation of points on the surface,The color does not change,Copper foil without fracture

Surface roughness(um)Rz

Drum side(um)

Less than 0.3

Less than 0.3

Less than 0.35

Matte side(um)

Less than 3.0

Less than 3.5

Less than 4.0

Surface tension(dyne/cm)

Drum side

62

65

68

Matte side

62

65

68

Coating performance

Cu foil with uniform tension on both sides, slurry coating uniformity



Electrolytic Copper Foil
