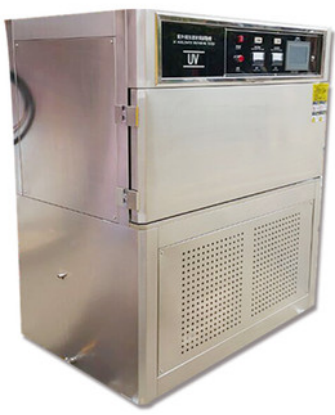

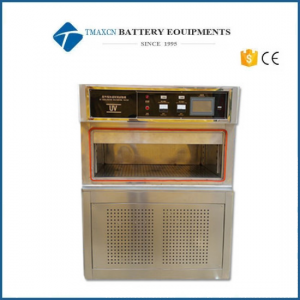

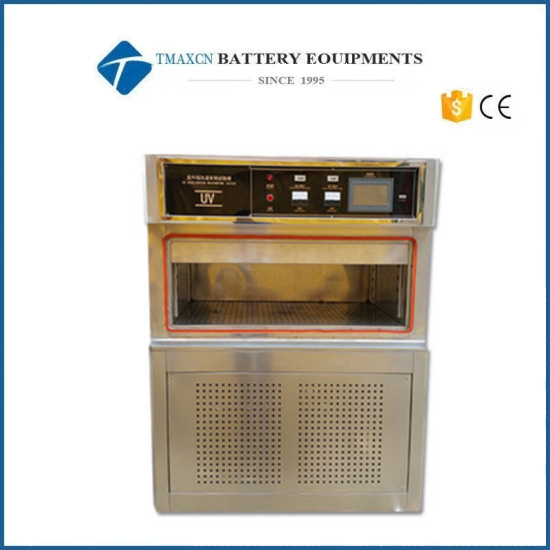

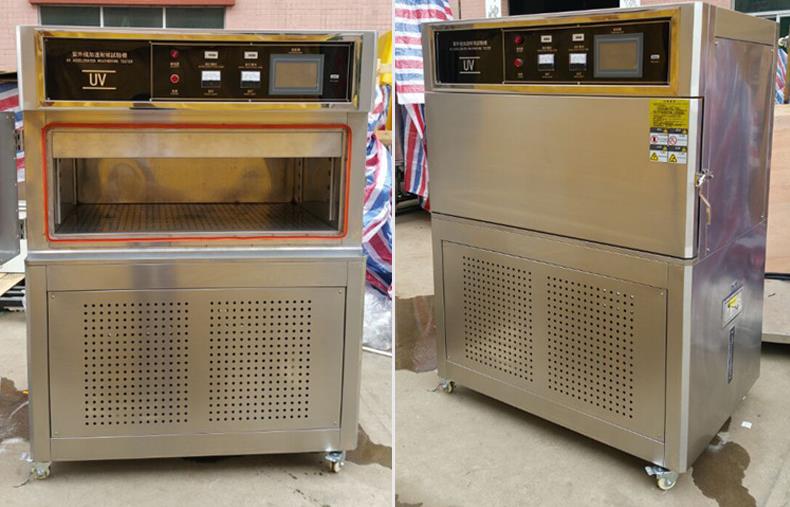

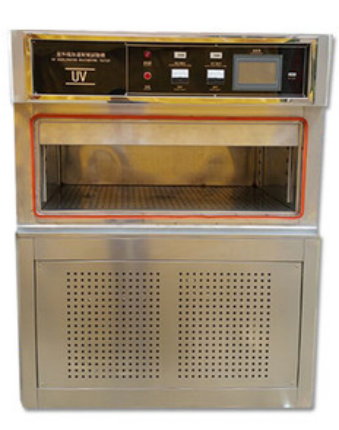

Fluorescent UV Lamp Climate Resistant Test Chamber

Model Number:
TMAX-UVC
Compliance:
CE certificate
Warranty:
1 year limited warranty with lifetime support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Fluorescent UV Lamp Climate Resistant Test Chamber

Overview

This series of UV climate resistant test chamber adopts the fluorescent UV lamp that best analogizes the UV spectrum in sunlight, and combines with temperature control and humidity supply devices to analogize the high temperature, high humidity, condensation, dark rain cycle and other factors of sunlight (UV section) that cause color change, brightness, strength reduction, cracking, peeling, pulverization, oxidation and other damage to materials, and at the same time, through the cooperation between UV and humidity With the same action, the single light resistance or single moisture resistance of the material is weakened or invalid, so it is widely used to evaluate the climate resistance of the material. The equipment has the characteristics of providing the best UV simulation of sunlight, low cost of use and maintenance, easy to use, automatic operation of the equipment with control, high automation of the test cycle, good light stability, high reproducibility of the test results.

Performance

Temperature range	RT+10℃~70℃
Humidity range	≥90%RH
Temperature display	0.1℃
Temperature fluctuation	±1.0℃
Lamp start	Stabilized voltage and current
Irradiance	Adjustable within 2.0W/m2
Test cycle	Adjustable test cycle of light, condensation and spray
Lamp tube	L=1200/40W，8pcs（UVA）
Effective irradiation area	700*1000mm
UV wavelength	UVA: 315-400nm
Irradiation blackboard temperature	50℃~70℃
Standard sample rack	Stainless steel layer

Machine parameters

Power supply	AC220V/110V, 50Hz/60Hz
Power	4.5KW, 25 A
Chamber dimensions	700mm D300mm H1100mm W
Volume	230L
Machine dimensions	According to the actual model
Machine material	304 stainless steel inside and outside
Shelf	Stainless steel plate
Controller	TEMI intelligent controller
Irradiation lamp	UVA-340 8pcs
Lamp Lifetime	＞2000h
Water source	Tap water or distilled water
Heating mode	Tank type heating, fast heating and uniform temperature distribution
Case cover	Two way flip type, easy to close
Activity wheel	The bottom of the unit is fixed by high quality Pu movable wheel
Drainage system	Drainage with U-type sediment device
Heating system	1. Using U-type titanium alloy high speed heating electric heating tube 2. Temperature control and illumination completely independent system 3. The output power of temperature control is calculated by microcomputer to achieve high accuracy and high efficiency 4. The heating system has the function of preventing overtemperature: 5. The blackboard temperature adopts the color touch-screen program controller, the output power is calculated by the microcomputer, the PID is self-tuning, and the monitoring adopts the standard PT100 blackboard temperature sensor. 6. The temperature of the water tank is controlled and heated by the color touch screen program Korean temperature controller. The water tank is located at the lower part of the box, with the built-in electric heater.
Safety protection	Earth protection Power overload short circuit breaker Overload and short circuit fuse of control circuit
Controller	Color touch control TEMI880 Original Korean TEMI touch screen programmable controller With power-off program memory function, continue after power on
Running time	0-999 hours and 59 minutes
temperature control	PID self-tuning SSR control
Temperature measuring device	Imported PT100 platinum resistance temperature and humidity sensor
Irradiation blackboard temperature	50℃~70℃
Spray function	YES
