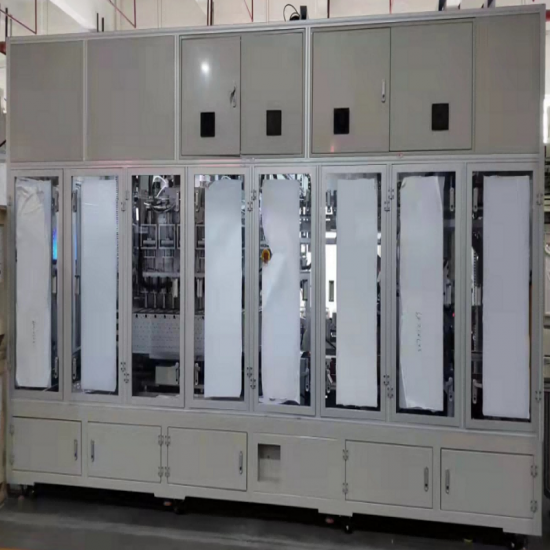

Fully Automated Prismatic Cell Electrolyte Liquid Injection Machine
Model Number:
TMAX-ZTH-09Compliance:
CE CertifiedWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western Union
Fully Automated Prismatic Cell Electrolyte Liquid Injection Machine
Workflow
Specification
|
Project |
Parameters |
|
Resting method |
Isobaric static or atmospheric static |
|
Vacuum holding pressure |
5KPA value change within 60S |
|
Injection accuracy |
Injection volume ≥125g±0.8%; Injection volume <125g±1g; |
|
Production efficiency |
≥12ppm |
|
Qualification rate |
≥99% |
|
Crop rate |
≥98% |
|
Dimension |
W10000 × L6500 x H2500mm |
|
Weight/load |
>750Kg/M2 |
|
Power supply |
AC380V three-phase;voltage fluctuation±10%;power:20KW;frequency:50Hz |
|
Compressed air |
0.5~0.7Mpa ( 5~7kgf/cm2 ), dosage 600L/min |
|
Model |
TMAXZTHZYX-300 |
|
Cell height |
90~220mm |
|
Cell width |
100~200mm |
|
Cell thickness |
20~80mm |

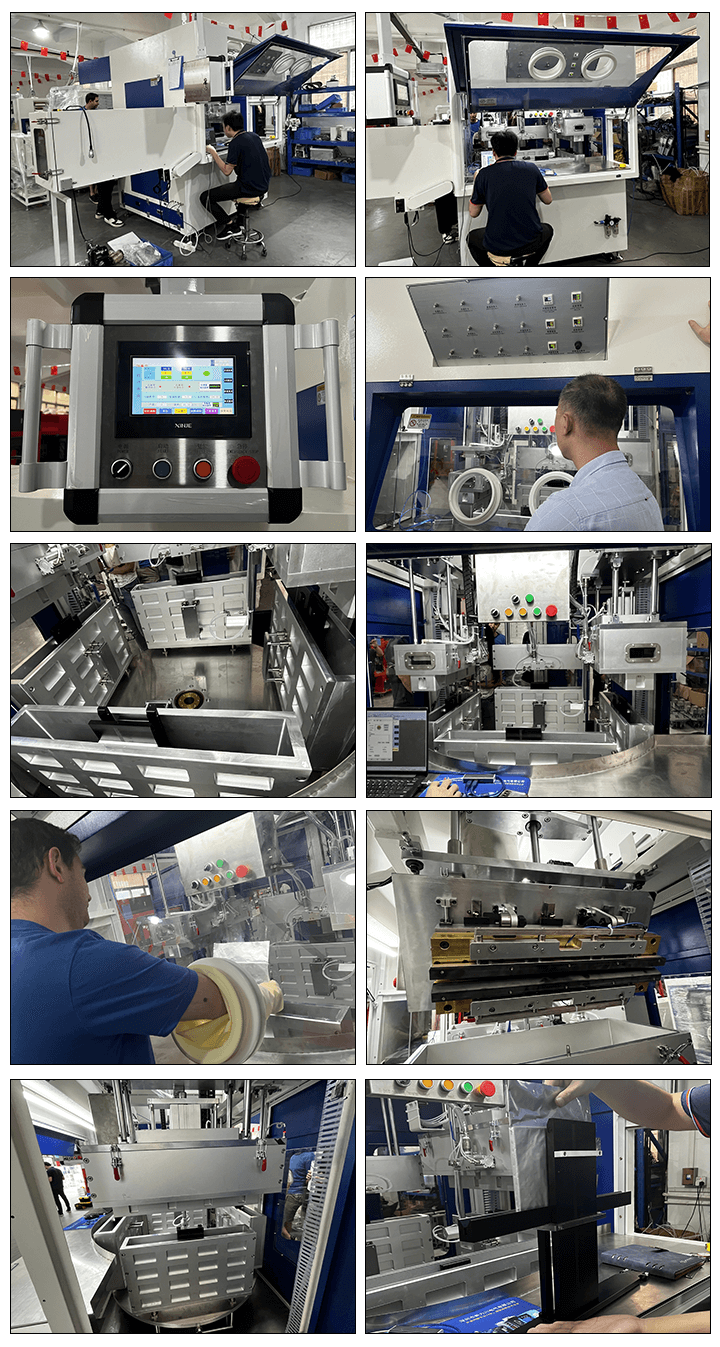

Production Assembly Plant
