Fully Automatic Lithium-Ion Cylindrical Cell Production Line For All Types 18650 21700 32650 Etc Battery Manufacture

Model Number:
TMAX-Auto-CY-01
Compliance:
CE Certified
Warranty:
One years limited warranty with lifetime technical support
Payment:
T/T, Credit Card, Paypal, LC, Western Union

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Fully Automatic Lithium-Ion Cylindrical Cell Production Line For All Types 18650 21700 32650 Etc Battery Manufacture

Introduction

Tmax is a lithium-ion battery One Stop Solutions Provider, we can provide the Electrode Preparation-Cell Assembling-Final Cell Finishing whole process.

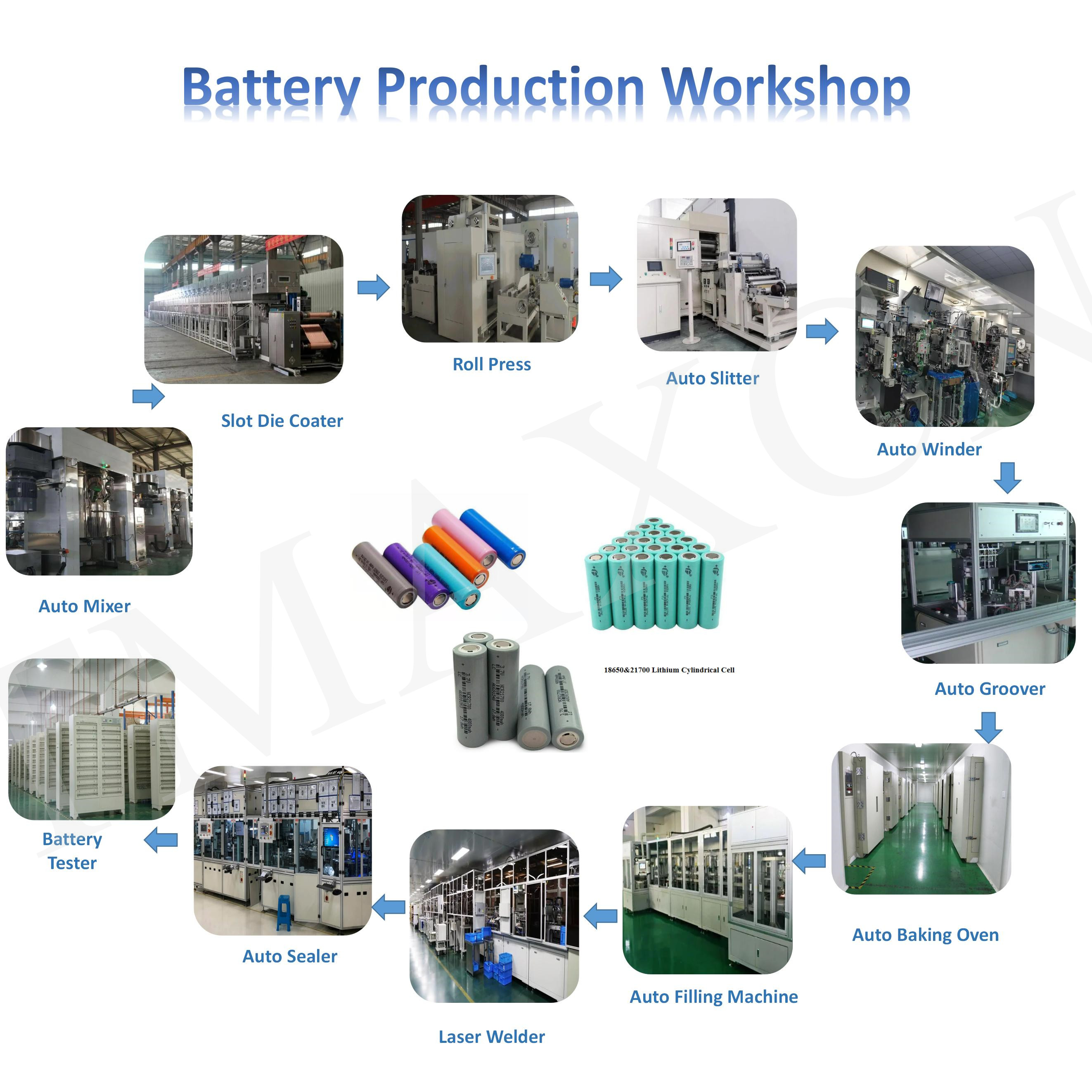

Cylindrical Battery Process Chart:

cylindrical cell production line

Cylindrical Cell Drawing Information required for designing the battery formula.

1. General information on target cell technology

Dimension	Unit	Cell Design
Chemistry
Capacity	Ah
Nominal Voltage	V
Cell format
Cell weight	g
Target capacity per year(net)	Gwh
Target OEE	%
Shift per day	#
Hours per shift	h
Working days per year	d

2.Further information on cell technologies

Housing

Jelly Roll

Electrode Spec

Electrolyte

Anode Slurry

Cathode Slurry

Formation & aging protocol

EOL

Final grading

3.Machinery List:

S NO.	Workshop	Equipment Name
1	Cathode	Oven
2	Planetary Vacuum Mixer
3	Turnover Barrel with lifting system
4	Viscometer
5	Coating Machine
6	Thickness Gauge
7	Continue Pressing Machine
8	Auto Slitting Machine
9	Baking Oven
10	Anode	Deionized water machine
11	Planetary Vacuum Mixer
12	Turnover Barrel with lifting system
13	Viscometer
14	Coating Machine
15	Thickness Gauge
16	Continue Pressing Machine
17	Auto Slitting Machine
18	Baking Oven
19	Assemble	Auto Winding Machine
20	Short Testing Machine
21	Bottom Shell Welding Machine
22	Auto Grooving Machine
23	Baking Oven
24	Filling and sealing	Glove Box Filling Machine (Hibar Pump) Vacuum Standing Machine
25	Laser Welder
26	Linear Sealing Machine
27	Battery Cleaning Machine
28	PVC Shrinkage Machine
29	Cartoning machine
30	Grading	Formation Machine
31	Computer
32	High temperature storage
33	Normal temperature storage
34	Cell Inkjet Printer
35	OCV1
36	OCV2
37	OCV3(Sorting machine)
38	Grading Machine
39	Sorting machine
40	Other	NMP recovery system
41	Plant dehumidification system
42	Purified water
43	Other Necessary	Vacuum Pump + Compressed Air Machine + Cooling Drying Machine
