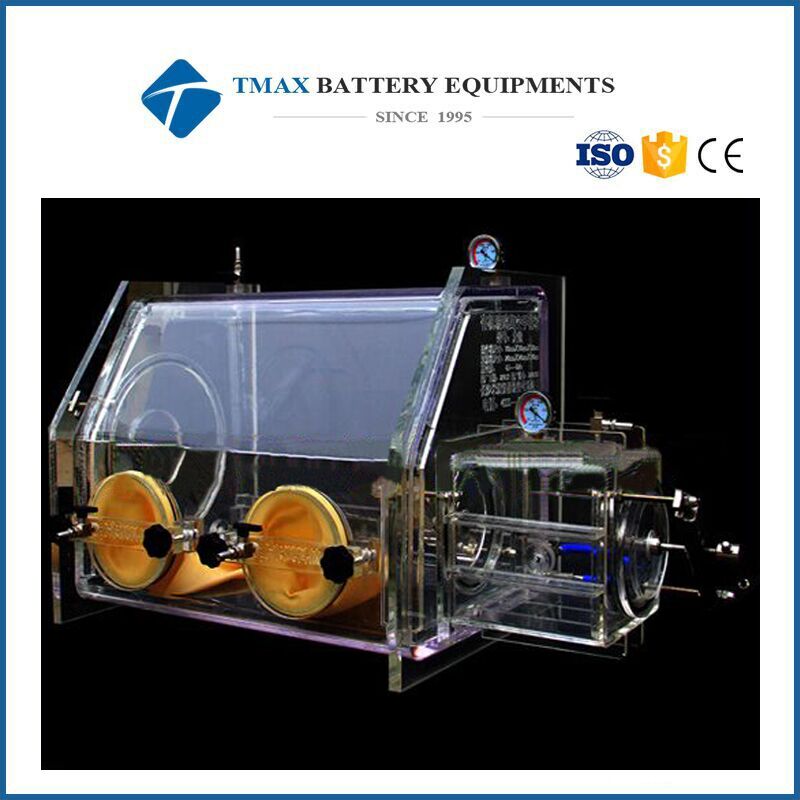

Fully Transparent Acrylic Glove Box For Lithium Battery
Model Number:
TMAX-MT012-CDimension(L*W*H):
700 * 450 * 500mmNet Weight:
90kgCompliance:
CE certificateWarranty:
2 Years with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Fully Transparent Acrylic Glove Box For Lithium Battery
Application:
This product is widely used in biochemistry, metallurgy, electronics, chemical, geological, mineral,pharmaceutical
and other sectors. Electronic materials, magnetic materials, equipment, batteries, biological cultivation, food vacuum
packaging, battery materials and so on.
The operation boxes in three models:
A: As radiation protection, quarantine operation or special dust-proof operation and can not be used for evacuation;
B: As an anaerobic glove box use hydrophobic transition chamber may be evacuated, the operating chamber of inert
gas displacement, maintaining anaerobic hydrophobic operating environment.
C: Operation box and transition box to perform vacuuming operation, the vacuum can reach ultimate vacuum -0.1MPA
Technical Specifications:
Transition chamber vacuum degree |
-0.1Mpa (2.5-stage vacuum table), packing more than 12 hours |
Operating room vacuum degree |
-0.1Mpa (2.5-stage vacuum table), packing more than 12 hours |
Using a gas |
Argon, helium, nitrogen gas (purity 99.95%) or more |
Operation box size |
700 * 450 * 500mm |
Transition box size |
240 * 240 * 240mm |
Vacuum degree |
-0.1mpa |
Dwell time |
12 hours |
Leak rate |
≤0.05% |
Diameter circle door |
300mm |
Weight |
88kg |
Accessories |
a pair of gloves, two inlet valve, the outlet valve 2, a vacuum gauge, a power strip. |
Mark: We can accept customized |
