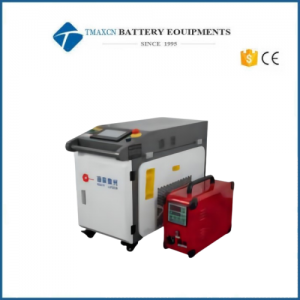

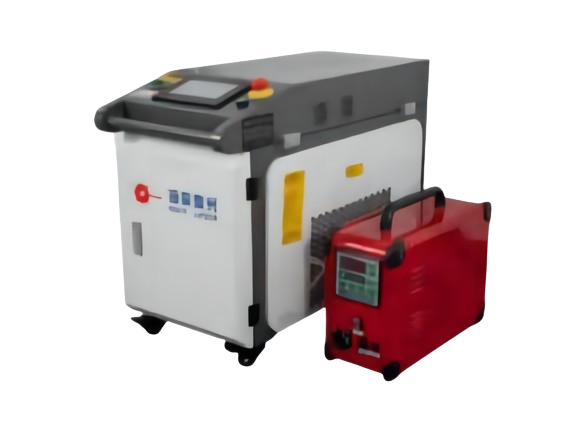

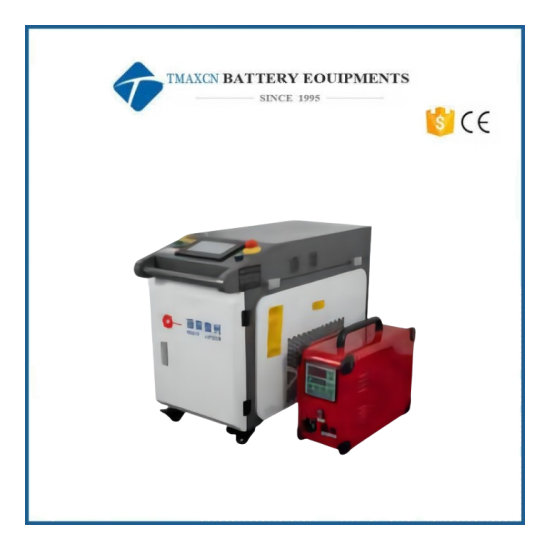

Handheld Laser Spot Welder Machine With Optional 1000W 1500W 2000W 3000W Power For Battery Material Welding

Model Number:
TMAX-HY-WA01
Input Power:
1500W
Compliance:
CE certificate
Warranty:
One Year Limited Warranty With Lifetime Support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Handheld Laser Spot Welder Machine With Optional 1000W 1500W 2000W 3000W Power For Battery Material Welding

Application

Suitable for various metal materials. Widely used in welding fields such as 3C, medical equipment, automobiles, railways, ships, aviation, air conditioning condensers, home decoration, elevators, power batteries, etc.

Technical parameter

Model	TMAX-HY-WA01	TMAX-HY-WA01	TMAX-HY-WA01	TMAX-HY-WA01
laser power	1000W	1500W	2000W	3000W
Melting depth (stainless steel)	2.68mm	3.59mm	4.57mm	6.87mm
Melting depth (carbon steel)	2.06mm	2.77mm	3.59mm	4.79mm
Melting depth (aluminum alloy)	2mm	3mm	4mm	6mm
Automatic wire feeding diameter	0.8-1.2	0.8-1.6	0.8-1.8	0.8-2.0
Laser wavelength	1070+1-10 nm		1070+1-10 nm
Laser frequency	50-5000HZ		50-5000HZ
positioning system	Red light indication		Red light indication
Power regulation range	10-100%		10-100%
Cooling method	water-cooling		water-cooling
Spot size	1.2-3.0mm (optional)		1.2-3.0mm (optional)
Welding head	Swinging laser welding head		Swinging laser welding head
Power instability	<3%		<3%
Protective gas flow rate	15-20 liters per minute (argon or nitrogen)		15-20 liters per minute (argon or nitrogen)
source	220V 50&60HZ		380V /50&60HZ
Size (length * width * height) CM	904070	904070	904070	1156587
Net weight	180KG	190KG	200KG	220KG

Features and advantages:

1. Easy to get started quickly, without the need for traditional professional welders.

2. No need to wear a protective mask, just wear laser protective glasses.

3. The weld seam is smooth and beautiful, with no polishing or only slight polishing.

4. By controlling the laser energy, the welding area only produces small or even no deformation.

5. The fiber length can reach 8-10m and can be used for welding large or long workpieces.

6. Low usage cost. Low energy consumption, low gas consumption, and low consumables.

7. Suitable for various welding processes: spot welding, seam welding, lap welding.

8. With the cooperation of automatic welding and robots on the sports platform, precise, sharp or complex parts can be welded according to specific procedures.

Comparison between laser welding and traditional TIG welding:

	Tig welding	Laser welding
Heat	Very high	Very low
deformation	Easy to deform	No deformation
working hours	long	short
Welding workload	2 professional welders	1 operator
exterior	Not good-looking, needs polishing	Smooth and beautiful, no need for polishing
Solder joint	Large solder joints	Fine and adjustable welding points
perforation	Easy to puncture	Not easy to puncture, controllable operation
Protective gas	Argon or N is required	Argon or N is required
accuracy	Normal	precision
energy consumption	high	low
security	UV radiation	No radiation

battery equipment
