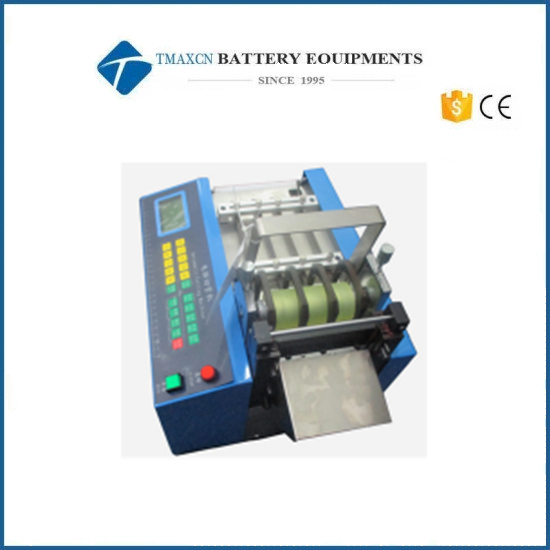

High-Speed Automatic Cutting Machine For Various Materials With Micro-Computer Control

  • Model Number:

    TMAX-HZX-500
  • Type:

    Automatic
  • Input Power:

    800W
  • Dimension(L*W*H):

    L570*W720*H360 mm
  • Net Weight:

    75KG
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION


High-Speed Automatic Cutting Machine For Various Materials With Micro-Computer Control


This machine is widely used in electronics industry, automobile and friction parts industry, electrical appliances, motors, toys, transformers, clothing, handicrafts and other industries. It specializes in cutting PVC bushing, heat shrinkable bushing, yellow wax tube, glass fiber tube, ferrofluoron bushing, silica gel tube, rubber tube, transfusion tube, PE tube, small wires, wire arrangement, nickel sheet, copper foil, etc. Aluminum foil and other fixed length, rubber strip, thermal shrinkable film quantitative cutting.


Feature:

1. Special mechanical structure and special cutting tools, together with professional software control, completely solve the problem of uneven incision: to achieve the level/degree of the incision.

2. Independently developed special cutting machine motion control system, core technology, and suitable for all industries of equipment length cutting.

3. LCD screen display, easy to operate.

4. High-speed feeding, micro-computer program control accuracy up to 0.1.

5. The length and speed can be adjusted continuously to achieve high efficiency.

6. The cutting speed can be adjusted to fully control the high and low speed of the cutting machine.

7. Set up the aggregate and total aggregate counts of self-active grouping.

8. Batch suspension and delay time can be set.

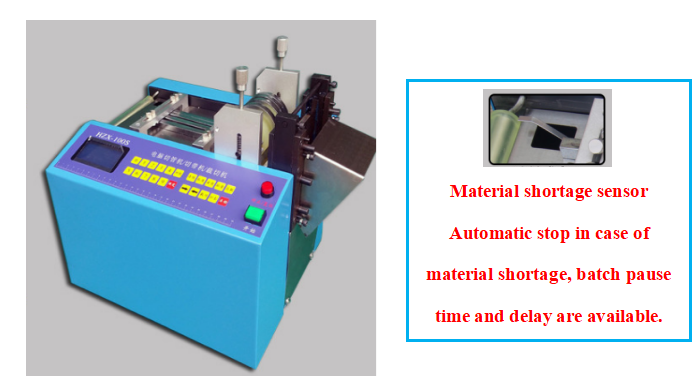

9. Lack of material stops automatically without special attention.


Specification

Power Supply

220V

Cutting Length

0.1mm-----9999.9mm

Cutting Widtth

0 --470mm

Weight

75KG

Cutter Material

Imported SKD2

Feeding Speed

Adjustable

Dimension

L570*W720*H360 mm

Power

800W

Motor

Feeding: 86 Steps

Cutter: AC motor

Stepping Motor Driver

HZX-500D11

Feeding Roller

Youli glue

Warranty

One year

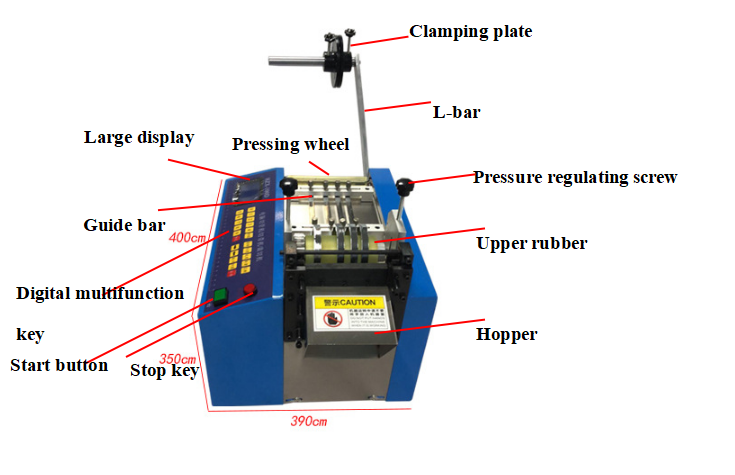

cutting machine1


cutting machine2

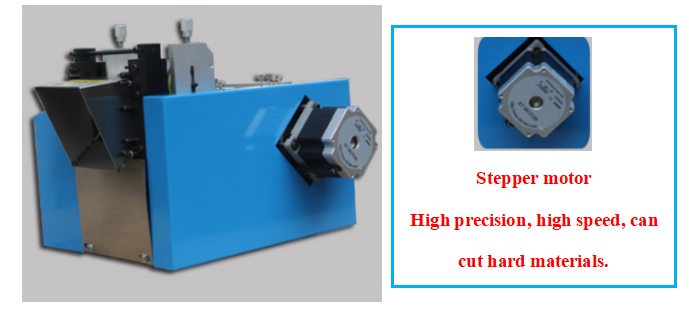

cutting machine3

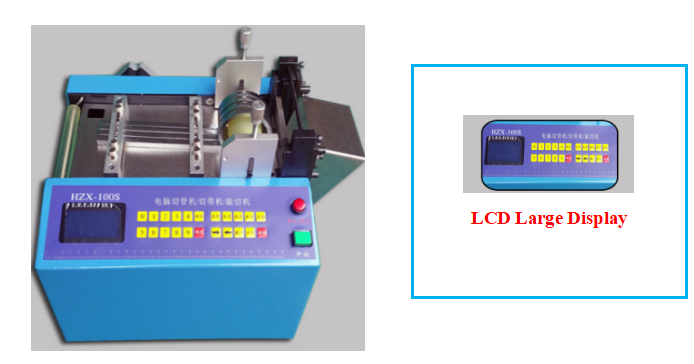

cutting machine4

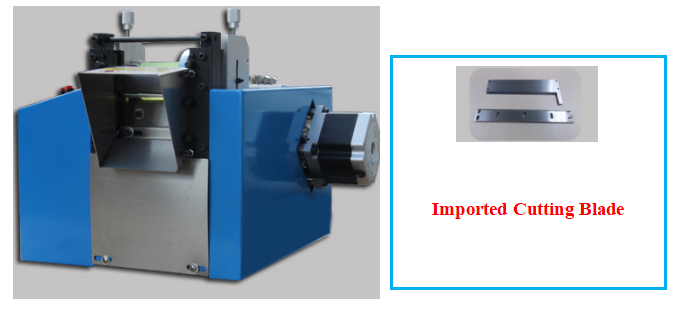

cutting machine6

pouch cell assembly machine


cutting machine6

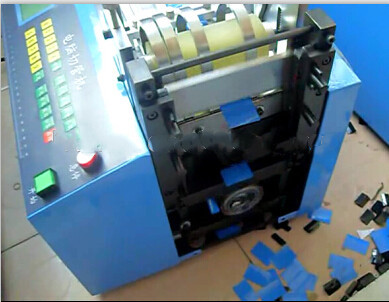

cutting machine7
