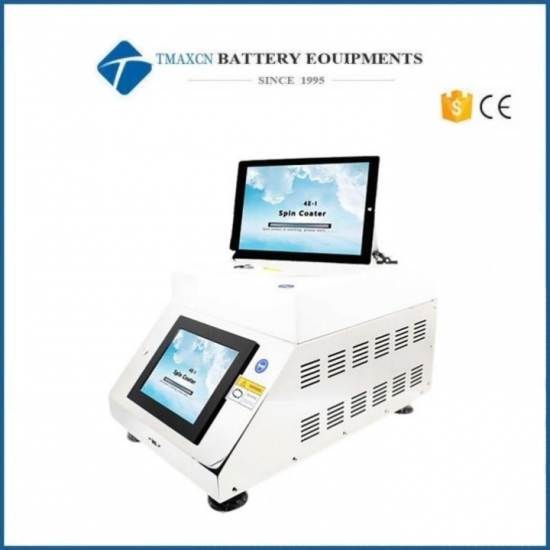

High Temperature 200C PTFE Chamber Vacuum Spin Coater
Model Number:
TMAX-4E-IDimension(L*W*H):
500mm(L) x 400mm(D) x 400mm(H)Net Weight:
20 kg (44 lbs)Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
High Temperature 200C PTFE Chamber Vacuum Spin Coater
Key Features：
1.With heating function: room temperature -200℃
2.With Bluetooth communication function and supporting remote communication software (only supported by KW-4E-I and above models)
3.Can be equipped with 2-4 channels of automatic glue dispensing and developing function (only supported by KW-4E-II and above models)
4.The adsorption force is adjustable, the adsorption force is displayed in real time, and it has leakage recovery function (only supported by KW-4E-III model)
5.The chamber is made of polytetrafluoroethylene PTFE material
6.Spin coating can be reversed and forwarded
7.Motor imported from Germany
Spin Coater Specifications
|
Feature |
With Bluetooth communication, free PC communication software, which can remotely control the glue leveling machine |
|
Substrate size |
5-200mm（Standard）/5-600mm（Optional） |
|
Speed range |
10- 12000RPM（Standard）/10-20000RPM （Optional） |
|
Acceleration range |
10-30000RPM/S， Adjustable |
|
Motor speed stability |
±1RPM |
|
Spin coating uniformity |
±1% |
|
Heating range |
Room temperature -200℃ |
|
Heating Speed |
to 100℃ (1S) to 200℃(2S) |
|
Cooling rate to room temperature |
2 second |
|
Human machine interface |
8-inch touch screen |
|
Communication interface |
USB (standard) / RS485 (standard) /Bluetooth (Optional) |
|
Turn around |
Support forward and reverse |
|
Stylus |
Stylus BAMBOO resistance pen (standard) |
|
Vacuum Pump |
SC-550V |
|
Set data |
Unlimited groups data,15 speeds per group (standard) Or countless speeds (optional) |
|
Seconds per period |
0- 10000s |
|
Storage data |
Unlimited data |
|
Data protection |
default with power-down protection |
|
Operating voltage(Spin Coater) |
AC100-250V, single phase, 50/60Hz |
|
Operating voltage(Pump) |
AC220V(Standard) AC110V(Optional) |
|
Pumping speed |
≥60L/MIN |
|
Max vacuum |
-85KPA |
|
Sound Level |
≤55db |
|
Spin coater power |
650W |
|
Pump power |
350W |
|
Dimensions(Spin Coater) |
340mm(W)X500mm(D)X250mm(H) |
|
Chamber material |
Overall PTFE material |
|
Weight(Spin Coater) |
18KG |
|
Weight(Pump) |
9KG |
|
Relative humidity |
< 85% |
|
Ambient temperature |
0-40℃ |
|
Warranty |
1 year |
