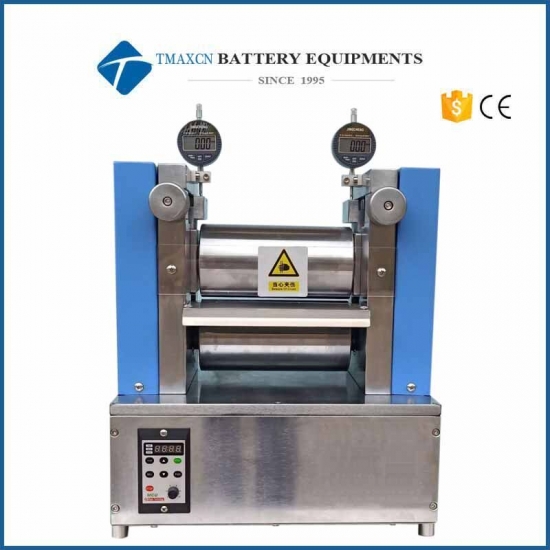

High Temperature Lab Heat Roller Press Machine for Battery Research
Model Number:
TMAX-heat260CDimension(L*W*H):
Diameter 100/200Net Weight:
110kgWarranty:
two years warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

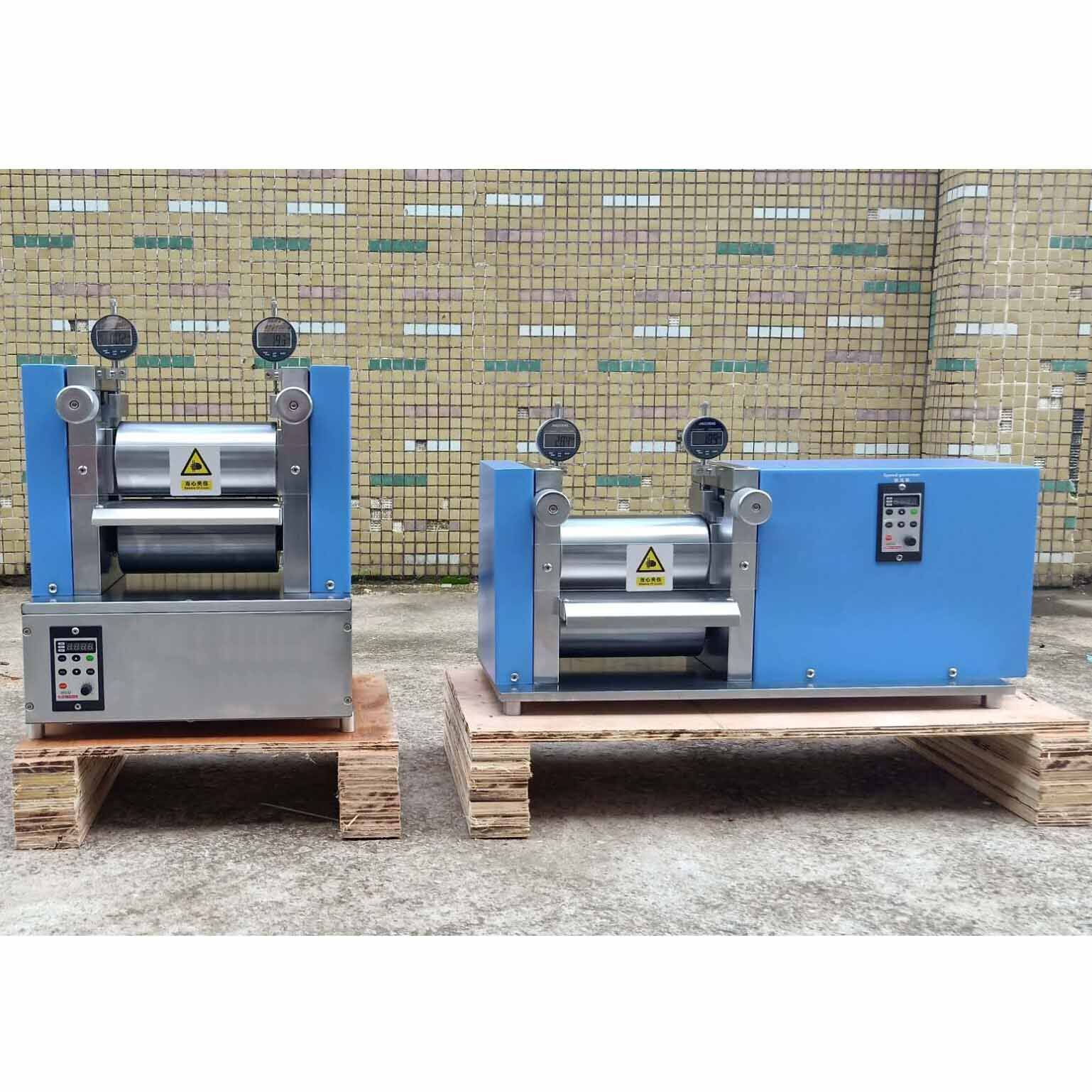

High Temperature Lab Heat Roller Press Machine for Battery Research
1. TMAX-heat260C is compact Hot Rolling Cylinder Press with max. working temperature of 100°C, which is designed for preparing battery electrode for both inside or outside glove-box. High torgue DC moter is Ar gas compatible. It serves well in the application such as increasing active material density of the electrode in Li-ion batteries research after coating. It has a pair of steel rollers with a heating capacity of 100°C max.
2. TMAX-heat260C is equipped with 24V DC motor for a safe operation under Ar gas environment.
SPECIFICATIONS:
Model |
JS100 |
JS150 |
JS200 |
JS300 |
JS400 |
Roller Size |
100mm(Dia.) x 100mm(W) |
100mm(Dia.) x 150mm(W) |
100mm(Dia.) x 200mm(W) |
100mm(Dia.) x 300mm(W) |
100mm(Dia.) x 400mm(W) |
Effective Cylinder Width |
100mm-200mm It can be customized |
||||
Product Thickness |
0~1.8 mm adjustable It can be customized |
||||
Dial Gauge Accuracy |
0.01mm |
||||
Minimum Thickness |
Depending on the electrode's material and thickness, typically: |
||||
Heating Temperature |
100°C maximum |
||||
Working Voltage |
110V - 240V AC, 50/60Hz, automatic switch for worldwide use |
||||
Roller |
1. Roller diameter tolerance: 0.004mm |
||||
Roller Surface Hardness |
62 HRC |
||||
Compliance |
CE Certificate |
||||
Warranty |
Two Years limited warranty with lifetime support |
||||
Warnings |
1. Do not touch the surface of the rolling part of the machine when the rollers are heated up or running. |
