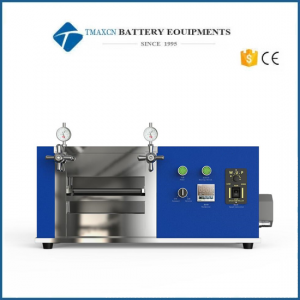

Laboratory Electric Hot Rolling Press Calendering Machine with Variable Speed&Ar Gas Compatible

Model Number:
TMAX-JS
Compliance:
CE certificate
Warranty:
Two Years limited warranty with lifetime support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Laboratory Electric Hot Rolling Press Calendering Machine with Variable Speed&Ar Gas Compatible

This type of roller press is specially used for electric rolling of small lithium electrode sheets, a small

amount of precious metal materials such as gold and silver, copper and aluminum, and other non-ferrous materials. It is especially suitable for thinning and increasing density of lithium battery plate, which is a clean energy material. The machine adopts gear drive to realize roll pressing. The rolling thickness can be adjusted and used conveniently. It can realize percentile meter to directly control the material pressing thickness

Working Principle

The equipment drives high hardness pressing roll by decelerating motor, and adjusts the gap of pressing roll mechanically, so that the pole sheet is pressed and formed, and the quality density of the pole sheet is increased.

Specifications

Model	TMAX-JS
Working Power	2400W
Voltage	220V/110V selectable
Effective Calendering Width	100-400mm selectable
Roller Size Optional	100mm Dia. x 100mm W 100mm Dia. x 200mm W 100mm Dia. x 300mm W 100mm Dia. x 400mm W Or customized roller diameter and rolling width upon request
Hardness of roll surface	HRC62, imported 9CR2MO steel roll material
Calendering Thickness (Effective clearance)	0~3 mm adjustable
Dial Gauge Accuracy	0.01mm
Rolling Speed	CVT, linear speed 0-8.5 m/min adjustable
Roller Surface Finish Degree	Hard chromium plating never rusts
Roll surface quenching depth	5mm
Max. Pressure	3Ton
Heating Temperature	· 150°C Max. (< 1hr) · 130°C Continuously · Recommended Heating Rate: 1.3°C/minute The heating temperature can be customized
Operation environment	Ar gas compatible
Temperature Control Accuracy	+/-1°C
Warranty	One year warranty with life time technical support
