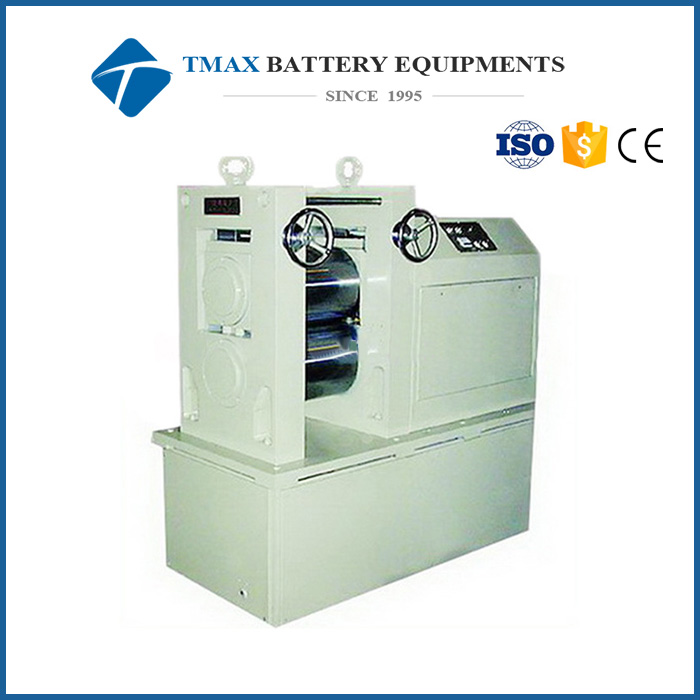

Hydraulic heating calendaring machine for Electrode Calendering
Model Number:
TMAX-GY-150Dimension(L*W*H):
Diameter 100/200/300Net Weight:
2 tonsWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Hydraulic heating calendaring machine for Electrode Calendering
1.Lower
price
2.easy operation and maintain
3.Use for lithium battery Lab and pilot line
4.technology support for battey
Experimental Hot Press Machine--TMAX-GY-300
For lithium battery cathode and anode rolling, specialty rolls with high hardness, high precision bearing great pressure, even pressure, easy to adjust. Frequency control, flexible and reliable.
Technical Parameters:
|
Roll Size |
( Diameter )300mm × 350mm |
|
Configuration: |
precision rack, short-changed eliminate vibration, deep quenching chilled, frequency conversion speed, air hydraulic clamping |
|
Two pressure rollers between the lines |
max70 Tons |
|
Roll surface hardness |
HRC ≥62 |
|
Decay hardness layer thickness |
10 ~ 12mm |
|
Roll surface roughness |
Ra ≤0.8 |
|
Installed roll jump accuracy error |
≤ ± 0.003mm |
|
Nip adjustable detection range |
0 ~ 2.0mm |
|
Roll speed |
stepless adjustable, maximum speed 5 rev / min. |
|
Host Dimension |
about 2.0m × 1.7m × 2.0m (L × W × H). |
|
Main motor power |
5.5KW |
|
Weight |
2 tons |
