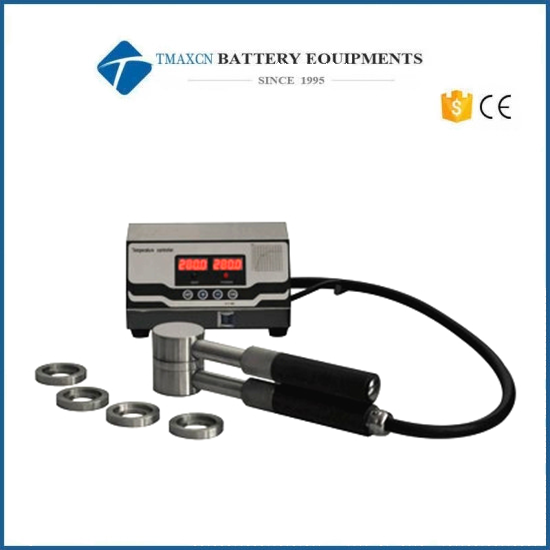

Hydraulic Press Quantitative Heating Dies Set For Lab Pellet Punch Research
Model Number:
TMAX-DJR-MHCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

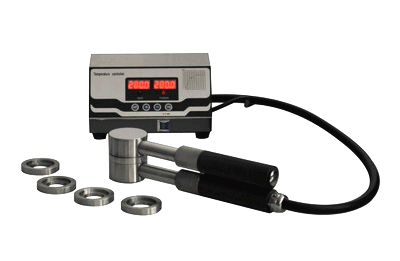

Hydraulic Press Quantitative Heating Dies Set For Lab Pellet Punch Research
Quantitative heating mold, the quantitative mold added thickness and diameter quantitative ring on the basis of common plate mold, the quantitative diameter is generally 25 m m, the quantitative thickness is 10μm，15μm，50μm，100μm，250μm，500μm, etc.; it is a supporting equipment for engineering technicians in Colleges and universities and research institutes to carry out spectrum detection and qualitative analysis.
Standard configuration
Electric heating mold(customizable) 1 set
High temperature insulation board 1 set
Temperature controller 1 set
Quantitative rings 6pcs (selected by customer)
Optional
Hydraulic hot press machine
Water cooler→It is recommended to configure water cooler if rapid cooling is required after mold heating.
Technical Parameter
|
Shape of compressible sample |
Circular sheet with diameter of Ф25mm |
|
Mold heating temperature |
Room temperature - 300℃ |
|

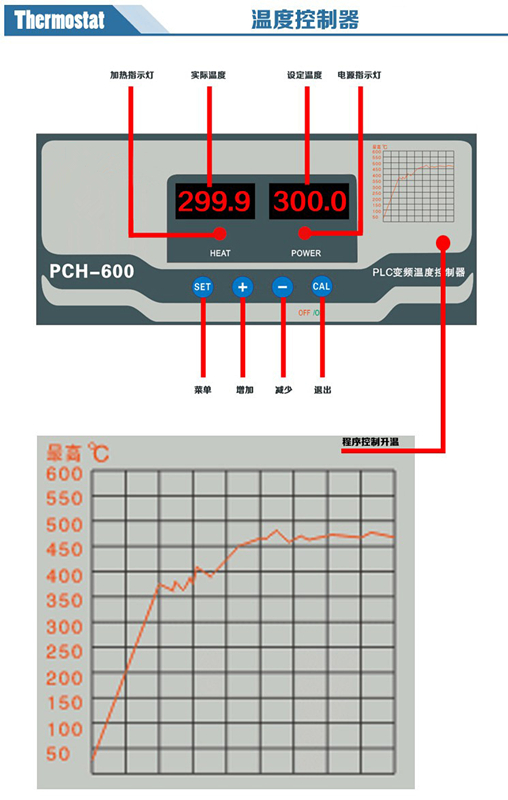

Thermostat type |
PLC program digital temperature controller, room temperature - 600.0 ℃, accuracy 0.1 ℃ |
|
Power supply |
220V/200W |
|
heating rate |
5-10℃/min |
|
Temperature overshoot |
Above 200 ℃ / < 1 ℃ |
|
Mold material |
Alloy tool steel: Cr12MoV |
|
Mold specification |
Round heating: fixed diameter Ф 25mm |
|
Quantitative thickness ring |
10μm，15μm，50μm，100μm，250μm，500μm, etc |
|
Boundary dimension |
260×290×160mm |
|
Die weight |
20kg (complete set) |
|
Standard configuration |
Electric heating mould 1 set + heat shield 1 set + intelligent temperature controller 1 set+6 quantitative rings(selected by customer) (hydraulic press and water cooler are optional) |
|
Mold notes |
The above indicators are for standard model reference only, we can customize various specifications, materials, shapes of molds according to customer needs |
