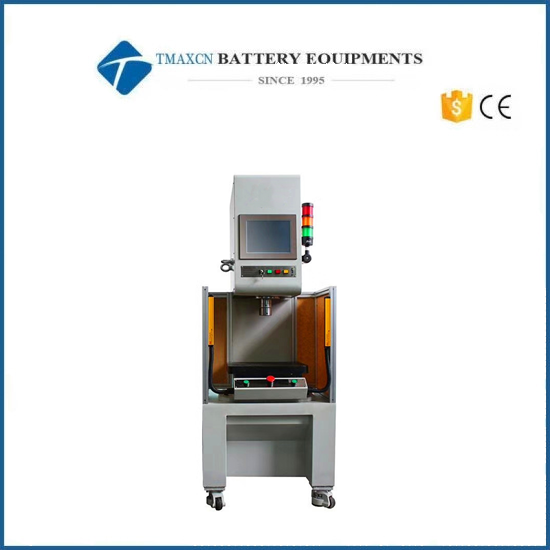

Industry Precision CNC Servo Press Machine

  • Model Number:

    TMAX-BSW08
  • Compliance:

    CE certificate
  • Warranty:

    One Year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Industry Four Column Hydraulic Press Machine


Introduction

Precision CNC Servo Press its working principle is the high precision ball screw driven by servo motor precision pressure assembly operations ,can be implemented of the whole process of the closed loop control, so as to realize the online quality control precision of the pressure equipment .The main structure of servo press can be divided into C type, arch, two columns and four columns.


Product parameters

Model

BSW08-0.5T

BSW08-1T

BSW08-2T

BSW08-5T

BSW08-10T

BSW08-20T

Nominal pressure(T)


0.5

1

2

5

10

20

Surface height(E) mm


850

850

850

850

850

850

Maximum opening distance(H)mm


300

350

350

400

500

500

Deep  throat(s) mm


150

150

175

200

225

250

Maximum stroke(mm)


200

200

200

200

200

200

Workbench size






Left and right(mm)


400

400

400

500

550

600



Before and after(mm)


300

300

350

400

450

500

Speed


Rated load speed(mm/s)


≤160

≤160

≤160

≤100

≤100

≤100



Working speedmm/s


≤35

≤35

≤35

≤35

≤35

≤35

Main frame size(W*L*H)


600x700x1800

650x750x1950

650x850x2100

680x950x2300

850x1000x2500

950x1100x3200

Power(Kw)

0.75 Kw

1.3 Kw

3Kw

4.4 Kw

7.5 Kw

15 Kw


Features

1. Pressing loading depth, press-fit depth, holding time, etc. can be input on the operation panel, friendly interface and simple operation.

2. Compared with the traditional pneumatic and hydraulic presses, the energy saving effect is over 80%, and it is more environmentally friendly and safe, which can meet the requirement in the dustless workshop.

3. It can be customized, stored and called 100 sets of pressure assembly .The three kinds of pressure loading modes can be seleted to meet your different process requirements.

4. Through the USB interface, the data can be stored in the flash disk,so as to ensure the traceability of product processing data and facilitate the management of production quality control.

5. Since the machine itself has precise pressure and displacement control functions, it is not necessary to impose a hard limit on the tooling. when processing different ,we can only call different pressure programs specifications, so we can easily realize the multi-purpose and flexible line .

6. Press of force and displacement, being connected graph can be displayed in the lCD touch screen, the whole process control can be automatically determine whether the product is qualified in any of the stage, 100% implementation of removing bad product, so as to realize the on-line quality control.

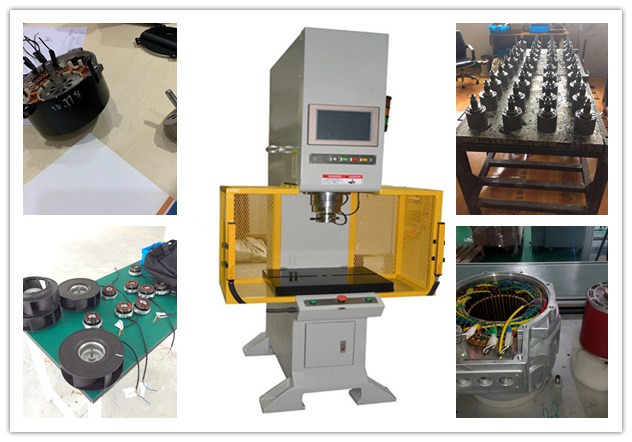

servo press

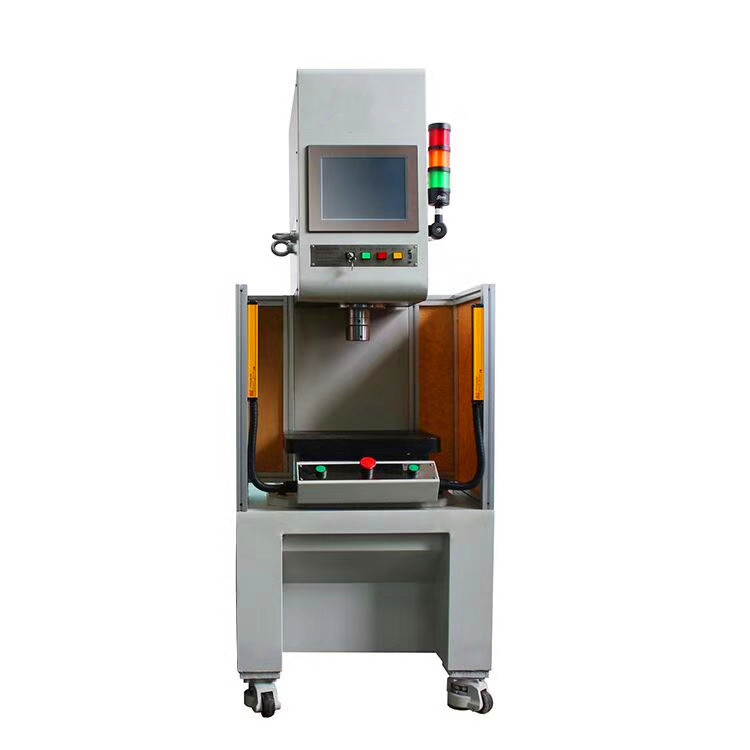

servo press
