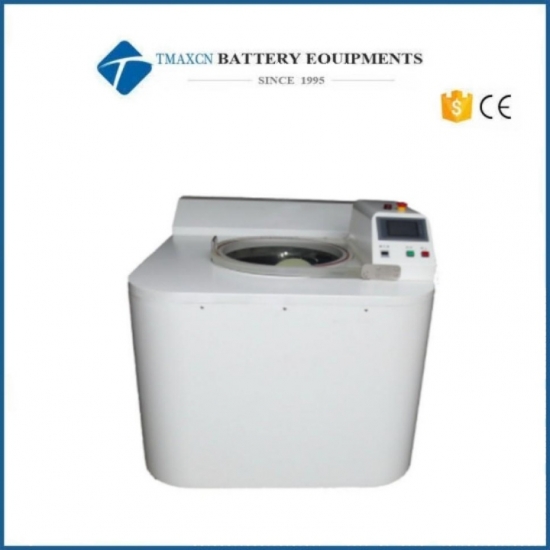

Lab 1.5L 4L 10L Vacuum Stirring And Defoaming Machine

Name:

Vacuum planetary gravity mixer (vacuum stirring and defoaming machine)

Model:

ITT-10000S

Purpose:

It is suitable for dispersing, mixing and defoaming of multi-component materials (silica gel, multi-component epoxy resin, etc.).

Standard container:

10L（HDPEφ237*258） 4000ml（HDPE φ173*193） 1500ML(HDPEφ130×146)

Maximum throughput:

1200g~18KG；≤6000mL；

Revolution:

100~800rpm stepless speed regulation, adjust 1rpm according to the actual needs of users;

Set time:

0~3000Sⅹ5(a total of five steps), the accuracy is 1s;

Parameter storage:

5 groups;

Vacuum degree:

-100KPa, precision 0.1KPa;

Vacuum source：

Built-in two-stage advanced vacuum pump 90L/min (=15L/sec=54~60m²/hour);

Absolute limit pressure (partial pressure 5*10-2Pa and 0.05Pa);

Absolute limit pressure (full pressure 4*10-1Pa and 0.4Pa)

Vacuum settings:

Vacuum independent switch, with vacuum delay function, vacuum degree can be adjusted arbitrarily;

Bearing:

Japan NSK bearing;

Control System:

Human-machine dialogue, Chinese interface, touch screen operation;

Balance adjustment:

Double cup configuration balance;

Transfer method:

Gear drive;

Working principle:

Public rotation wingless centrifugal gravity method;

Alarm system:

When running, the upper cover is uncovered and detected;

Safety protection:

During operation, the upper cover is locked, and when the upper cover is opened, it stops working;

Applicable temperature and humidity:

10~40 ℃; 20~80%RH (if there is no foggy moisture, it is enough);

Voltage:

AC380V±5%; 3-Phase; 50~60Hz;

Power:

The rated power of the host is 6KW;

Dimensions:

L1200×W1000×H1100mm；

Host weight:

950Kg；

Features:

Rotation and revolution motion can generate a centrifugal gravity of up to 800G, which can be used for strong dispersion and defoaming; there is no spiral blade, which can realize stirring and dispersion in the container; no cleaning is required, and it will not pollute the material; it will not damage the properties of materials (especially fibrous materials); Human-computer interaction, easy to operate; ultra-small, ultra-light, ultra-quiet optimized design.
