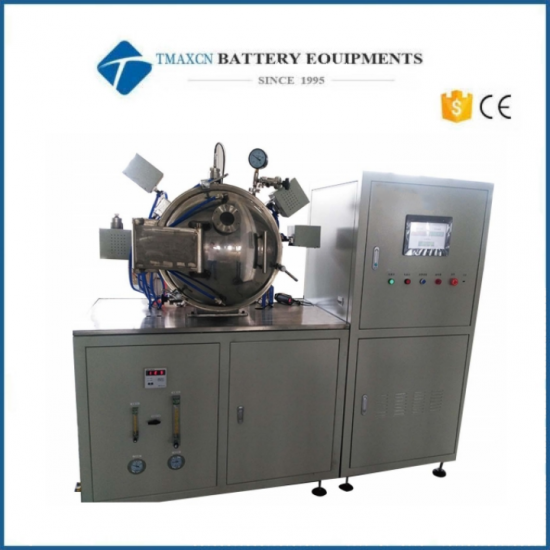

Lab 1550C Microwave Atmosphere Furnace with 180x150mm Heating Space
Model Number:
TMAX-HY-QS6016Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Lab 1550C Microwave Atmosphere Furnace with 180x150mm Heating Space
Summarize
HY-QS6016 microwave atmosphere furnace is a standard multi-functional microwave high temperature experimental workstation, which is suitable for the synthesis, roasting, heat treatment and sintering process research under the condition of high temperature heating and controlled atmosphere by pre-vacuuming.
Main feature
1) Industrial brand microwave source, microwave output power stepless adjustable, to ensure continuous and stable long-term operation of equipment;
2) Furnace body and vacuum system integrated design, simple structure, safe and reliable;
3) With rotating platform, microwave distribution is more uniform;
4) Unique special crucible and thermal insulation structure for selection, no pollution to materials;
5) The process research of various reactions can be carried out by various temperature measurement methods at 1600℃;
6) The experimental efficiency is greatly improved, the material heating speed is fast, the uniformity is good, the sintered material grain is small, and the performance is good.
Technical parameter
|
Model Parameter |
HY-QS6016 |
|
Voltage |
380±10V，50Hz |
|
Microwave output power |
0.01~5.60kW, continuously adjustable (Panasonic) |
|
Heating space (D x H) |
φ180x150mm |
|
Microwave frequency |
2.45GHz |
|
Operating temperature |
1550℃ |
|
Temperature measurement method |
Infrared |
|
Static limit vacuum |
≤100Pa |
|
Atmosphere system |
Multi-channel atmosphere control pipeline, rapid pre-vacuuming, can be filled with oxidizing gas, inert gas, weak reduction gas, etc |
|
Heated platform rotation seal and rate |
Magnetic fluid: 4-6rpm |
|
Control mode |
Programmable Logic Controller (Mitsubishi)+ Touch screen (Kunlun Mode) |
|
Control program |
Can set multi-stage process parameters, with data storage and export functions, a variety of control modes; One-button oven |
|
Anti-microwave leakage |
Microwave leakage level <1mW/cm2 |
|
Safety protection |
Furnace door shutting switch, door open and power off, re-power delay, over-temperature alarm |
|
Main body (L x W x H) |
About 2100x1000x2000mm |
