Lab 18650 Cylindrical Cell Case With Anti-Explosive Cap
Model Number:
TMAX-18650-CType:
Coin Cell Case/Spring/SpacerDimension(L*W*H):
18650 Cell CaseCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
DESCRIPTION

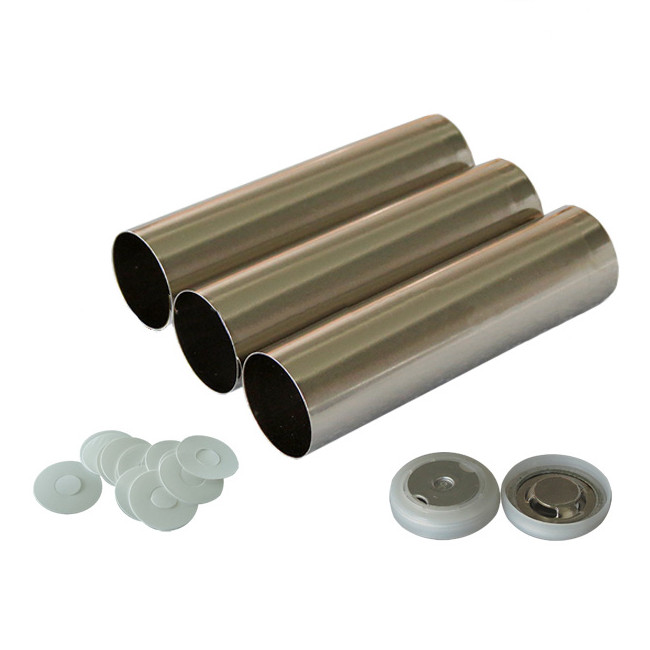

Lab 18650 Cylindrical Cell Case With Anti-Explosive Cap
Size
|
Case Dimensions |
18.15mm(OD) x 17.6mm(ID) x 68.25mm(H) |
|
Top Cap |
17.6mm(D) x 3.85mm(H) |
|
Top Cap with O ring |
17.6mm(D) x 4mm(H) |
|
Top Insulator |
17mm(D) x 0.12mm(H) with 6.5mm hole |
|
Bottom Insulator |
17mm(D) x 0.12mm(H) with 6.5mm hole |
Materials
|
Case |
304ss stainless steel |
|
cap |
Nickel plated steel |
|
Seal O-ring |
Nylon |
|
Insulating gasket |
PP |
