Lab 2KG Small Vacuum Melting Furnace with Molecular Pump
Model Number:
TMAX-VIF-2Compliance:
CE compliantWarranty:
Two years limited warranty with lifetime technical supportPlace of Origin:
Fujian, China (Mainland):
XiamenPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

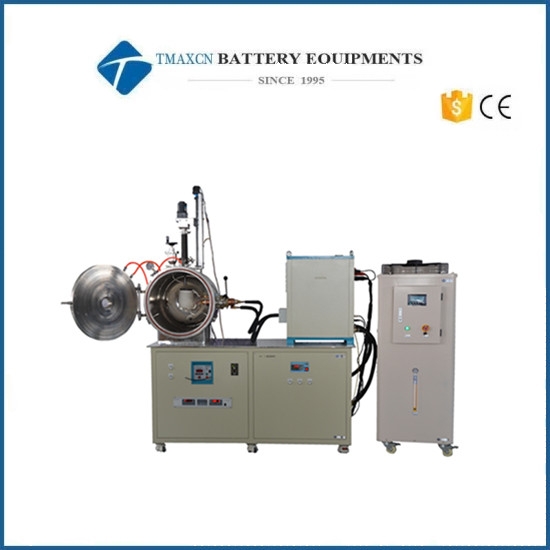

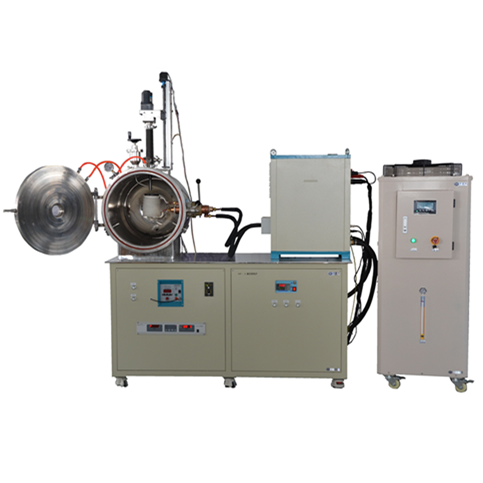

Lab 2KG Small Vacuum Melting Furnace with Molecular Pump
This product by the furnace cover, furnace, slewing mechanism, smelting casting system, pneumatic system and atmosphere control system, vacuum system, IGBT power supply and control system, water cooling system, the workbench, and other components of the electric control system, furnace, atmosphere control system, melting casting system and electric control system and cooling system components are installed on the equipment platform, make the whole equipment as a whole, the furnace frame, the installation has a horizontal adjustment wheel, not only can drag of freedom, and have adjust the function of the level.
VIFVacuum Induction Melting-VIM
|
Model |
VIF-2 |
|||
Maximum melting weight (calculated by iron liquid) |
2KG |
||||
Maximum heating temperature |
2100 ℃ |
||||
Maximum heating temperature
|
power supply |
medium frequency power supply |
|||
oscillation frequency |
30-80KHZ |
||||
Max Input Power |
15KW |
||||
heating current |
2-52A |
||||
Cooling water requirement |
≥0.2MPa ≥6L/PART |
||||
power weight |
35KG |
||||
duty cycle |
100% |
||||
input voltage |
3 PHASES 380V 50 OR 60HZ |
||||
heating method |
induction heating |
||||
Internal diameter |
500mm |
||||
Cavity vacuum degree (molecular pump unit) |
< 6X10 -4Pa |
||||
Air pressure of the cavity |
< 0.5MPa |
||||
Rate of pressure rise |
<4Pa/hr |
||||
Broken even protection and display |
Yes |
||||
over-temperature protection |
Yes |
||||
Over-current protection |
Yes |
||||
Under pressure protection (Water pressure) |
Yes |
||||
Temperature Stabilizing |
PID |
||||
control precision |
+/- 1~ 5 ℃(above 600 ℃) |
||||
Temperature detection mode |
CThermocouple or infrared thermometer C Measurement range of type thermocouple:0-1800℃ Measuring range of infrared thermometer:800-2300℃ |
||||
Min. melting time |
10~20Min |
||||
Crucible can dump rotation Angle |
0-360° |
||||
Whether the vacuum chamber can be connected with water cold crucible |
yes |
||||
Observation window size |
Dia 90mm |
||||
Vacuum Unit
|
Unit input voltage |
380V /220V |
|||
Bellow |
KF40X1000 |
||||
Vacuum baffle valve |
KF40 |
||||
vacuum pump TRP24
|
Power |
0.75KW |
|||
Voltage |
380V |
||||
rotate speed |
1450rpm |
||||
Inlet Diameter |
KF25/KF40 |
||||
pumping rate of the front pump(L/S) |
6 |
||||
ultimate pressure |
4X10 -2Pa |
||||
compound vacuum gauge |
Model |
ZDF |
|||
PSU |
220V 55W |
||||
control precision |
± 1% |
||||
pressure range of vacuum gauge |
10-5 -10 5 Pa |
||||
The secondary pump for molecular pump(Plan 1) |
molecular pump (vacuum up the cavity to 6x10e-4pa)
|
Model |
FJ620 |
||
Input voltage |
220V |
||||
Molecular pump inlet flange |
DN160 |
||||
Molecular pump pumping rateL/S (for air) |
600 |
||||
Molecular pump limit pressure(Pa) |
6×10-7 |
||||
cooling water pressure (MPa) |
0.1-0.2 |
||||
Temperature of cooling water |
<25℃ |
||||
environment temperature |
0~40℃ |
||||
Recommended starting pressure |
<100Pa |
||||
|
The secondary pump is the diffusion pump (Plan 2) |
Diffusion pump can put the vacuum degree of cavity to draw 5 x10e - 3 pa) |
Voltage |
220V |
|
Power |
1000W |
||||
Extreme vacuum (when it's not leaking) |
10E-5Pa |
||||
Inlet interface |
DN150 |
||||
Oulet interface |
DN40 |
||||
Injection of oil |
0.3L |
||||
pumping rate(N2) |
1000L/S |
||||
Water cooler (optional) CW6200 |
PSU |
220V 1.68KW |
|||
Max.lift head |
25M |
||||
maximum flow |
16L/min |
||||
Water tank capacity |
15L |
||||
refrigerating capacity |
4420Kcal/h |
||||
In and out of the gate |
Rp1/2’’ |
||||
Machine dimensions |
67X47X89(LXWXH) |
