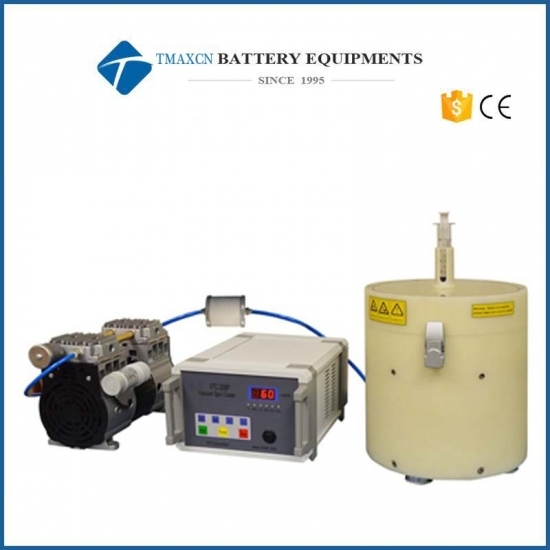

Lab Anti-Corrosion Spin Coater ( 8000 RPM & 6" Wafer Max.) With Complete Accessories

  • Model Number:

    TMAX-SC1
  • Dimension(L*W*H):

    25.2cm(Φ) x 41cm(H)
  • Net Weight:

    25 kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
  • Delivery Time:

    3 Days
contact now
DESCRIPTION

Lab Anti-Corrosion Spin Coater ( 8000 RPM & 6" Wafer Max.) With Complete Accessories



SPECIFICATIONS:

Structure
  • Case and spin disk made of Polypropylene (PP) to resist most of the corrosive solutions.
  • Digital control box is separated from spin coater.
  • One filter is included in standard package. It is used to connect the pump and coater for preventing waste water from flowing into the pump.

Input Power
  • Default 220VAC, 50/60Hz,  single phase, 1000W Max.
  • 110V is available in optional bar ( with 1500W transformer )
  • A power socket on the back of the Digital control box is used to supply power to the vacuum pump. (The output voltage of this power outlet depends on the input voltage of the spin coater, e.g. if the spin coater is plugged into AC 110V, this power socket will supply AC 110V.)


Chamber  & Vacuum Chuck
  • Chamber diameter:  150 mm
  • PP anti-corrosive vacuum chuck Φ100mm, which can hold substrate upto 6" Dia.
  • If your sample < 10 mm, please order rubber cup from us at extra cost
Vacuum Pump
  • One 120L/min Oilless Vacuum Pump is included in the standard package, please click the picture below for specification details.
  • For Ar glove box user, we recommend our 24VDC vacuum pump for simple pump and coater connection with no feedthrough required.

Spin Speed
  • Digital control panel with six programmable segments of different spin times and speeds
  • Maximum programmable spin time 6*60s = 360s
  • 500 - 8000 RPM adjustable spinning speed  at each segment
Liquid Injecting

  • 20mL syringe is used to contain the coating material

Optional
  • You may choose Precision Electronic Single Channel Pipette: 20 - 200uL for more accurate coating
  • Using plasma cleaner to treat substrate surface before coating can improve film quality
  • Heating cover with digital temperature controller up to 120 ℃ is available upon request at extra cost ($1950), which allow sample drying in-situ during and after coating
  • Vacuumable spin coater with digital gauge is available
Motor  24VDC, Brushless,  200W max.:
Product Dimensions
Spin Coater:       25.2cm(Φ) x 41cm(H)
Digital controller: 23cm(L) x32cm(W) x16cm(H)
Net Weight 25 kg
Compliance
  • CE Certified
Warranty
  • Two years limited with lifetime support
  • Rusting and damage due to improper storage condition or maintenance are not covered by warranty




Anti-Corrosion Spin Coater
