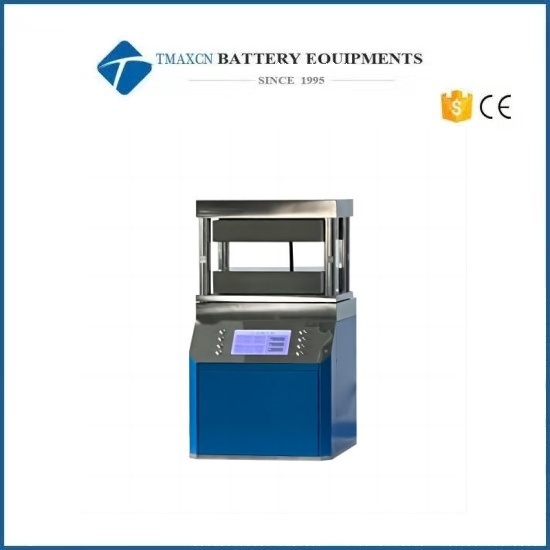

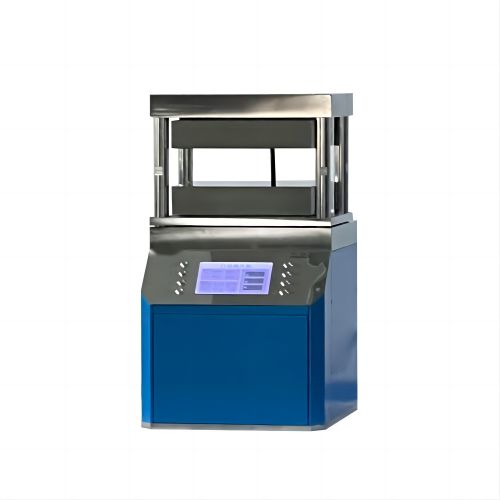

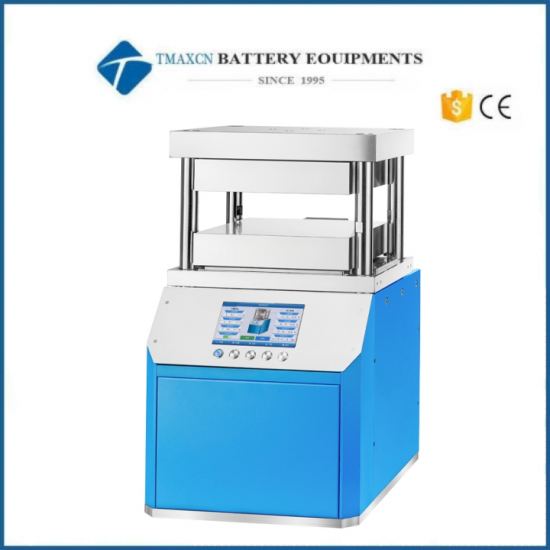

Lab Automatic Hydraulic Lamination 500℃ Heat Press Machine With Double Plates

Model Number:
TMAX-RYJ-600ZG
Compliance:
CE certificate
Warranty:
Two Years limited warranty with lifetime support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Lab Automatic Hydraulic Lamination 500℃ Heat Press Machine With Double Plates

1、 Instrument overview:

RYJ-600 ZG series automatic hot press is our company combined with the market demand, on the basis of the original manual hot press and split hot press, developed an integrated, double plate, widened high temperature hot press. The machine adopts double flat plate heating, automatic integration design, program pressure-program pressure protection-timing pressure relief, compared with the manual thermal press working efficiency is greatly improved. The electric heating press is widely used, which meets the needs of some customers for large tonnage pressure and large area sample heating. Thermal press mainly meet the need for powder samples, particle samples, plastic film and other solid samples for high temperature, high pressure samples or test of some laboratories and units, the sample of particles or powder after heating pressure make its chemical stability improvement, is not broken to cutting preservation, is the colleges and universities, research institute engineering spectral detection analysis of qualitative ideal supporting equipment.

2. Main technical parameters:

unit type	RYJ-600ZG1	RYJ-600ZG2	RYJ-600ZG3	RYJ-600ZG4
pressure limit	1.0-25T/0.1t		1.0-30T/0.1t	1.0-50T/0.1t
Maximum cylinder trip	65mm
Pressure process	XNNETS Automatic, program pressure / slow pressure-program pressure retention / replenishment-timing pressure relief
hold time	0-999.59 (points.second)
Temperature control range of the temperature controller	Room temperature-500℃ / 0.1℃
demonstration of the type	Water cooling machine optional! Vacuum hot press can be customized according to customer requirements
Heating temperature of mold	Room temperature-500.0℃
Equipment insulation method	Inlet heat insulation plate + stainless steel water cooling heat insulation plate (must start when above 400℃)

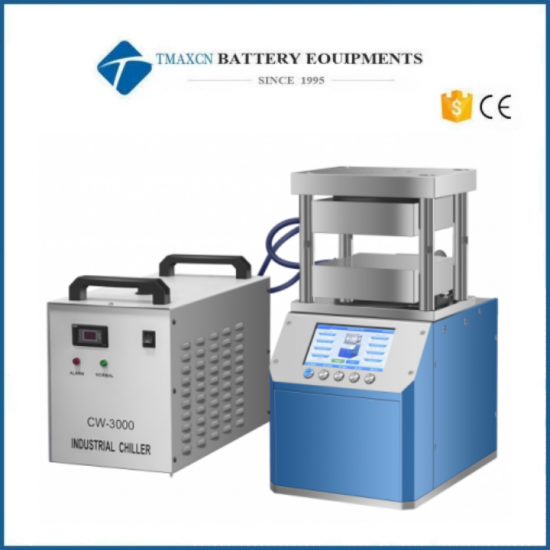

Cooling mode of mold	Rapid cooling by water cooling cycle (optional for water cooler)
structure of equipment	One-piece structure, the equipment is not sealed connection, reduce the oil leakage point
Type of heating mold	Double plate heated, pressurized, top plate fixed / polished panel
Heating mold size	180x180mm	200x200mm	300x300mm	400x400mm
Machine size	280x420x620mm	280x420x620mm	400x500x750mm	500x600x780mm
device power supply	220V/3000W	220V/3000W	220V/4000W	220V/8000W
weight of equipment	About 160kg	About 170kg	About 360kg	About 460kg

battery equipment
