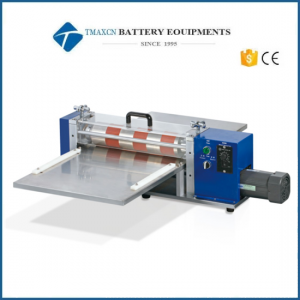

Lab Battery Slitting Slitter Machine For Cylindrical Cell Electrode Sheet Cutting
Model Number:
TMAX-FT300Type:
Electrode Slitting MachineInput Power:
0.5KWDimension(L*W*H):
850*620*300(L*W*H, mm)Compliance:
CE certificateWarranty:
2 year limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Lab Battery Slitting Slitter Machine For Cylindrical Cell Electrode Sheet Cutting
Introduction
It is mainly used for rolling and slitting the positive and negative electrode sheet of lithium-ion batteries after coating, using a gapless knife for slitting, and the edges of the slices are neat to ensure dimensional accuracy.
Main features
*Adjustable guide device for feeding positioning;
*Using electric rolling and slitting method;
*The amount of engagement can be adjusted;
*Upper and lower blades are at the same speed, synchronous transmission;
*The hob is equipped with a plexiglass protection device for safe operation;
*Open-type hob fixing method is convenient for hob disassembly;
*High cutting precision and reliable work;
Technical parameters
|
Cutting knife type |
Upper and lower round knives for cutting |
|
Cutter width |
10～345mm |
|
Distribution of knife interval |
Standard 56mm, 56mm, 56mm, 58mm, 58mm. 58mm. (Other intervals are optional) |
|
Thickness |
50-400μm battery electrode sheet |
|
The amount of knife |
The hand wheel is adjustable 0.2-0.4m |
|
Cutter diameter |
85mm |
|
Cutter material |
Ultra-fine alloy steel |
|
Width adjustment |
Spacer adjustment |
|
Slitting speed |
<2m/min, adjustable knob |
|
Power supply |
AC220V/50Hz |
|
Power |
0.5KW |
|
Dimensions(L*W*H, mm) |
850*620*300 |
|
Weight |
100kg |
Equipment composition
*This machine is composed of upper and lower hobs, hob brackets, feeding and discharging positioning plates, gears, reducers, motors and frames.
*The main components are the upper and lower hobs, which are composed of a steel knife and a rubber knife.
