Lab Button Cell Battery Electrode Sheet Die Punching Disc Cutter

Model Number:
TMAX-CP60
Dimension(L*W*H):
110*150*235mm
Net Weight:
About 10kg
Compliance:
CE certificate
Warranty:
One Year limited warranty with lifetime support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Lab Button Cell Battery Electrode Sheet Die Punching Disc Cutter

TMAX-CP60B is a compact disc cutter with quality sliding rail with ball bearing for precision cutting. It can be easily placed into a glove box with a transition chamber diameter larger than 230mm. This tool is manually operated and is designed for cutting round discs from thin metal sheet/foil (< 0.5 mm) or separator film (<30um). The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches as well as TEM sample preparation.

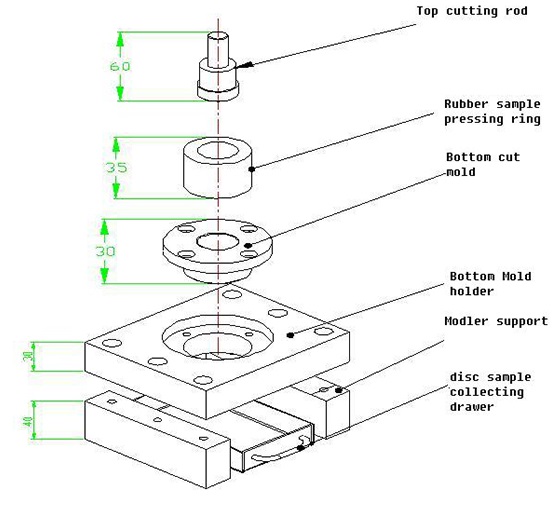

Structure	Major structural material: Cr Plated Steel
Cutting Die	16, 19, and 20mm precision dies are included in standard package Optional 3 - 24mm customized dies are available.
Product Dimensions	209mm(L) x 120mm(W) x 394mm(H) Compact size which can be put into glovebox throug air lock chamber
Warranty	One year limited manufacture warranty with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Net Weight	10 kg (22 lbs)

coin cell disc cutter Die Punching Cutter
