Lab Customized Film Coating Machine with Doctor blade & Bar Alternately
Model Number:
TMAX-MS-ZN320BNet Weight:
52KGCompliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

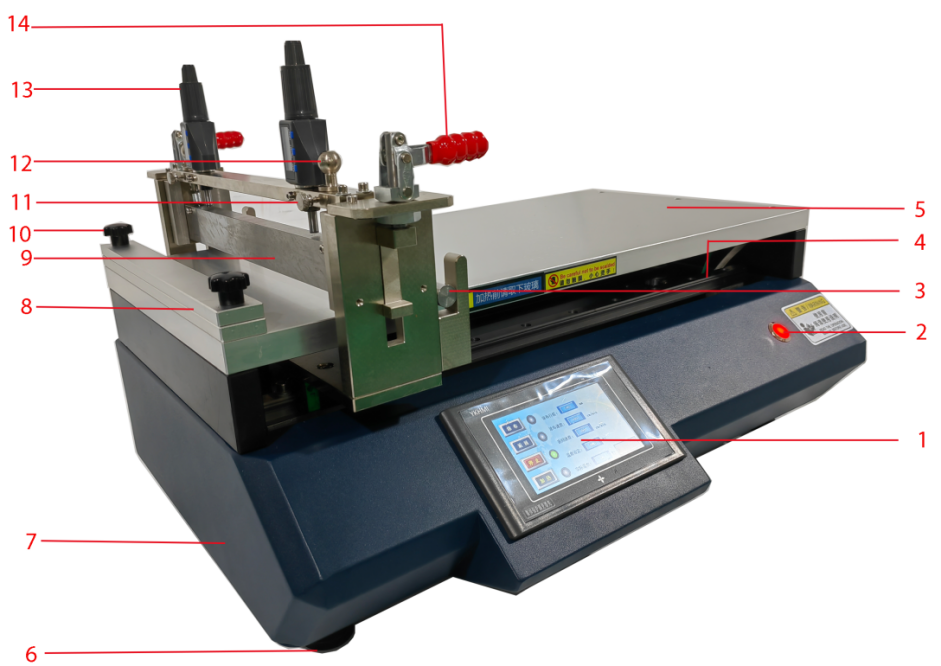

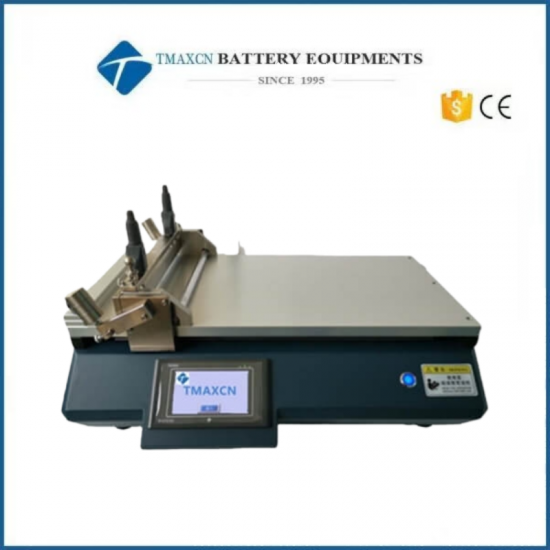

Lab Customized Film Coating Machine with Doctor blade & Bar Alternately
ZN320B is an automatic coating machine with integrated functions such as bar coating, doctor blade and heating. It is an ideal equipment for coating electrodes, glues and other high viscosity samples in the laboratory.
Specifications
|
Control system |
5 inch PLC touch screen |
|
Coating method |
Doctor blade & bar can be used alternately |
|
Heating |
Normal temperature ~ 160 degrees (constant temperature setting) |
|
Effective coating range |
300*450mm |
|
Coating thickness |
0.01-5MM |
|
Automatic control |
Travel setting/speed setting/temperature setting |
|
Vacuum function |
Optional |
|
Suitable for |
Lithium battery, PET, aluminum foil, paper and other flat materials |
|
Bar thickness (Optional) |
5、10、15、20、25、30、35、40、45、50、55、60、65、70、75、80、90、100、110、120、130、140、150、200um |
