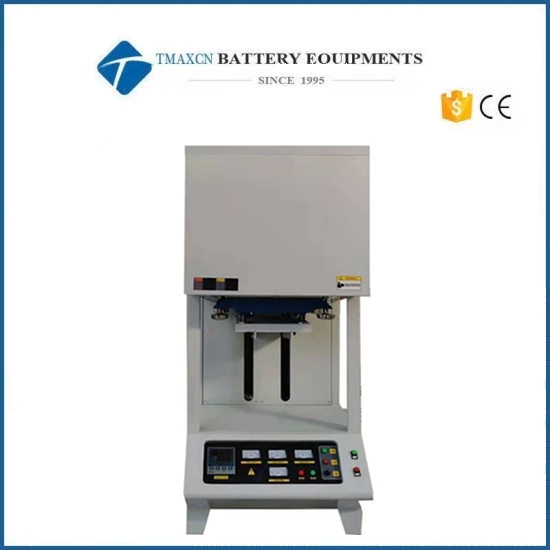

Lab High Temperature 1400C Stirring Elevator Lifting Furnace
Model Number:
TMAX-VSF1400Dimension(L*W*H):
660X675X1380Max. Loading Capacity:
265KGCompliance:
CE compliantWarranty:
0ne years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Lab High Temperature 1400C Stirring Elevator Lifting Furnace
Specification
Item No. |
VSF1400-I |
VSF1400-II |
VSF1400-III |
Power |
5.2KW |
9KW |
12KW |
Chamber size(mm) |
200X200X200 |
250X250X250 |
300X300X300 |
Overall meas.(mm) |
660X675X 1380 |
660X 675X1430 |
710X725X1480 |
Voltage |
220V |
220v |
380V |
N.W.(KG) |
265 |
280 |
310 |
Phase |
Single |
Single |
Single |
Heating element |
silicon carbide rod |
||
Temperature controller |
40 programmable segments (Shimaden fp93 made in Japan), It can separate into 4,2,1 programs, ie. 4x10 segments. FP93 have 6 PID controls, different PID are used for low,middle, high temperature for precise control. Over-temperature and over-current protection, shutdown automatically when thermocouple is broken ( it will shut down power when temperature is higher than 1620or thermocouples is broken, "ON" on the board is off and "OFF" is on) There is Fahrenheit (F) and Celsius (C) for option. With 485 communication interface: which can stop the furnace automatically. |
||
Chamber |
1600Alumina polycrystalline fiber. Imported from Japan |
||
Temperature Accuracy |
+/- 1 C |
||
Trigger |
Phase-shift trigger |
||
Power control |
Chint |
||
Controlled silicon |
Germany Semikron 106/16E |
||
Max. Temperature |
1700 C |
||
Constant temperature |
1650 C |
||
Max. Vacuum Temperature |
1500 C |
||
Vacuum level in cold |
≤10Pa |
||
Heating Rate |
≤20 C/ Min |
||
Recommended Heating Rate |
≤10 C/ Min |
||
Thermocouple |
Type B |
||
Surface temperature |
≤45 |
||
Safe protection system |
The furnace door is equipped with a travel switch, and when the furnace door is lowered, the power supply will be automatically cut off to prevent the electric shock from touching the heating element. |
||
Certificate |
CE |
||
Electric push rod power |
150W |
||
Electric push rod lifting speed |
420mm/ Min |
||
Position limit switch |
When the lifting rod is at its highest or lowest point, the position limit switch will automatically cut off the lift bar, so that it will not rise or fall |
