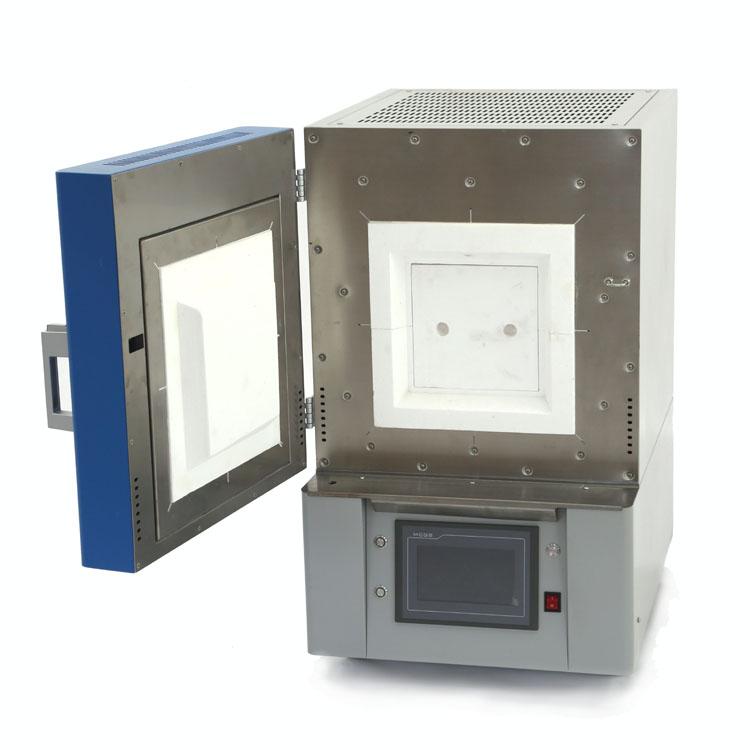

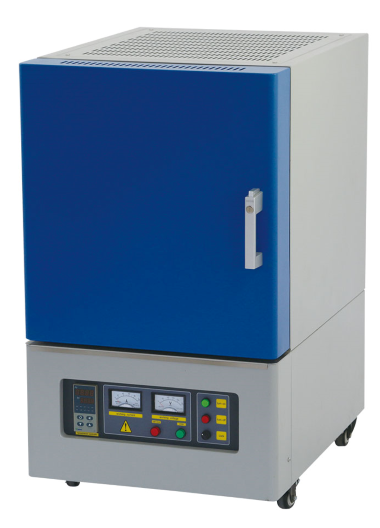

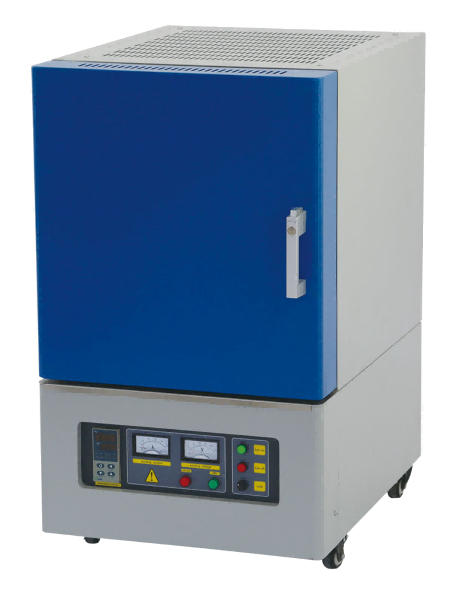

Lab High Temperature 1800°C Electric 36L Muffle Furnace With Mosi2 Heating Element

Main parameter

PN: SX2-16-18TP

Max.Temp: 1800C

Working temperature:1700C（≤2h）,continue working temperature is 1650C

Chamber size:D400*W300*H300mm

Standard Voltage: 380V 2 phase/380V 3phase

Heating rate:0~10  Degree/Min，suggest 5C/min

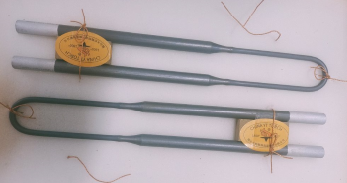

Heating element: high quality 1800 Mosi2 heating element

Thermocouple：B type

Temperature accuracy: ±1℃

Furnace Chamber material

Adopt the most advanced 1800 type light alumina ceramic fiber in the world, with excellent thermal insulation effect, light weight, high temperature resistance, cold and heat resistance, no crack, no crystallization, no slag, do not worry about pollution of the fired products. The energy saving effect is 60-80% of the old electric furnace.

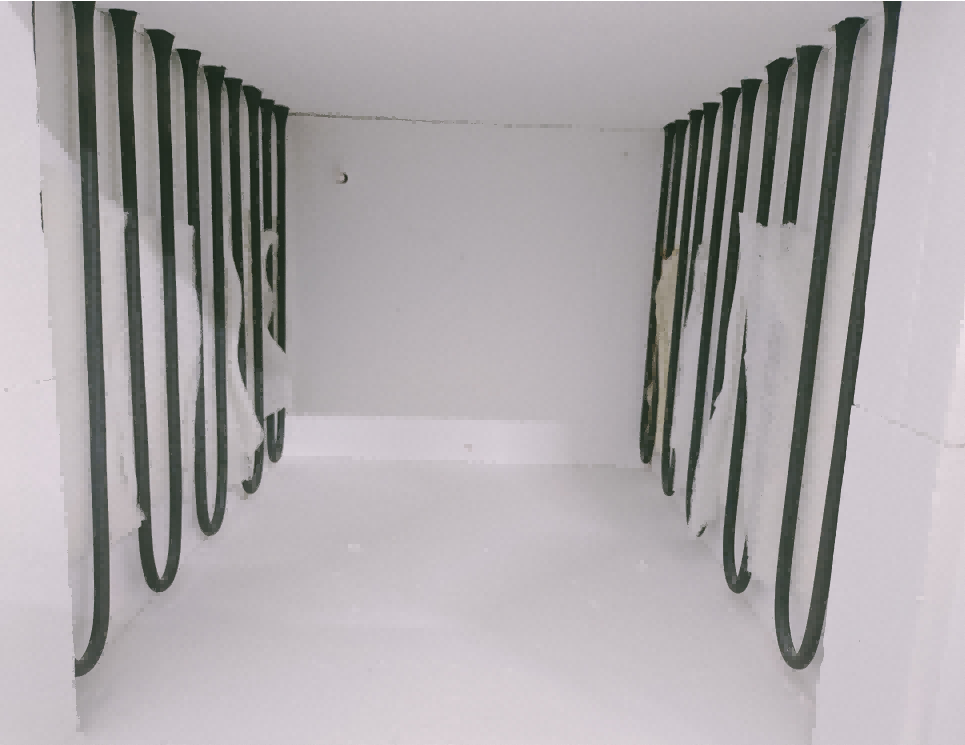

Furnace chamber design

Furnace adopts the stepped assembly structure, integrating the mechanical law, effectively ensure the furnace in the heating process of uniform force, ensure that the heat is not easy to disperse, prolong the service life of the furnace.

Furnace shell  structure

Electric furnace shell matrial is carbon steel materials,adopts double layer forced air cooling structure, so that the electric furnace works at the highest temperature and the external temperature of the shell is close to room temperature, so as to avoid accidental injury.

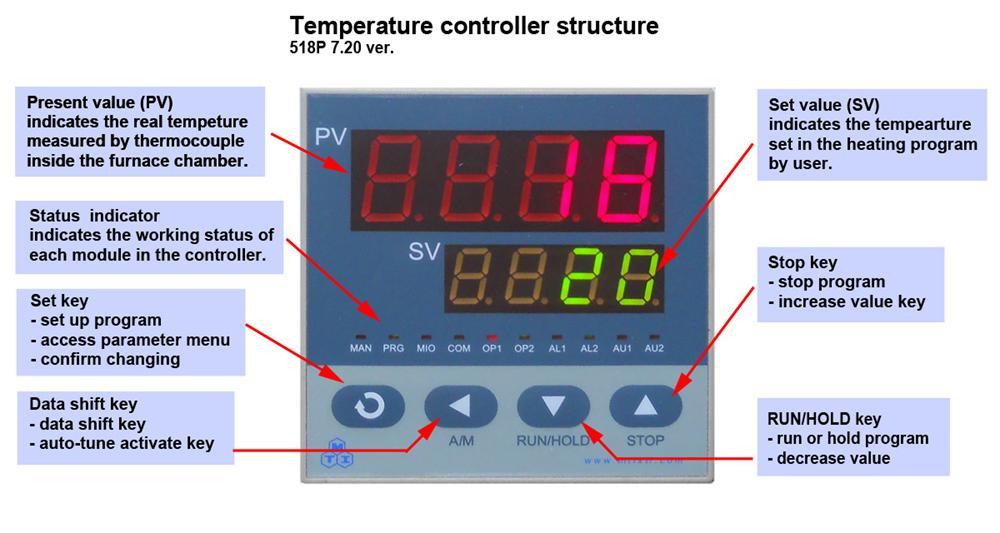

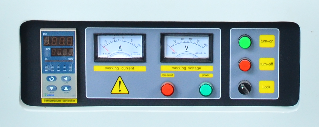

Temperature controlling

Adopt international advanced temperature controller, with 30 programmable PID self-tuning, automatic temperature rise, automatic temperature drop, no duty.

Temperature control security

The electric furnace adopts integrated circuit, module control, double circuit protection (partial temperature protection, ultra-high temperature protection, coupling protection, overcurrent protection, overpressure protection and other protection functions) to make the electric furnace work stable and reliable, safe.

Warranty

One year limited warranty with lifetime support, excluding heating element,cooling fans,thermocouple damaged by user.

Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.

Certificates: CE,ISO&UL

Standard Package Accessories:

Electric Furnace

1 set

High temperature gloves

1 pair

Heating element

2pcs

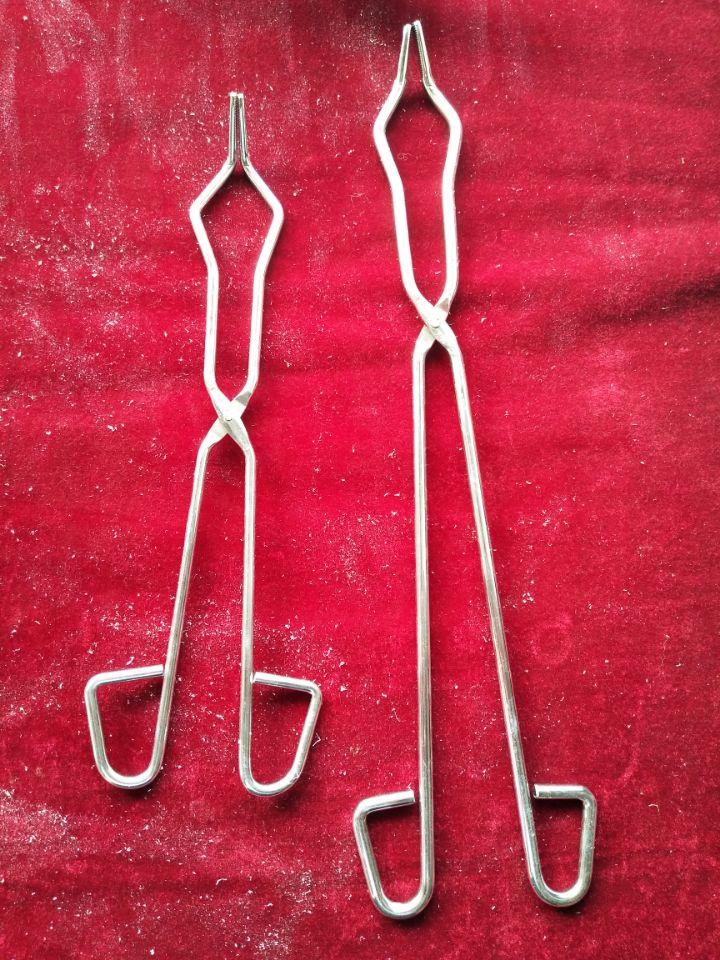

Crucible clip

1 pc

User manual

1 book

Door block

1 pc
