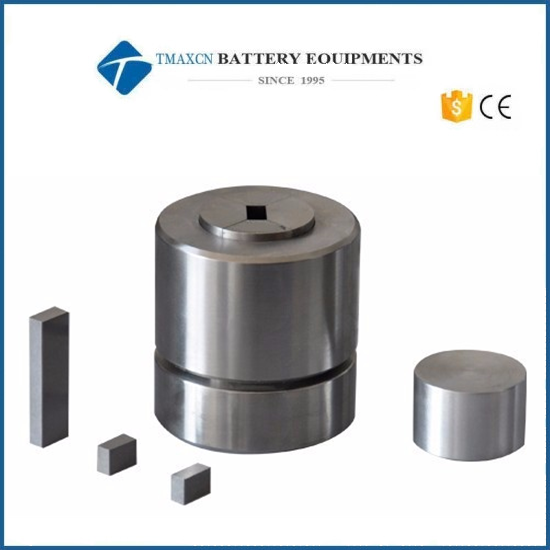

Lab Hydraulic Press Parts Rectangle Mold

Model Number:
TMAX-ROM
Compliance:
CE certificate
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

Lab Hydraulic Press Parts Rectangle Mold

The square split mold is also known as the easy-to-retract combined mold, which is generally composed of four inner cores to form a rectangular or square cavity. The diameter of the cavity is the diameter of the sample that is pressed and passed through a circular sleeve. Sleeve and fix the four inner cores as a whole. After the pressing work is completed, the four inner cores are separated by quickly disassembling the mold sleeve, and the pressed powder sample is directly sampled without going through the demolding process, which avoids damage to the sample during the demolding process. This type of mold is mainly used to press some powder samples that are not easy to form or unwind, or because the thickness of the pressed sample is too high, the open valve mold is more suitable for such requirements. The size of the general laboratory mold press: 3-80mm, the common size: within 10-40mm, the press sample size is customized according to user needs. Special mold size, specifications, shape, material, etc. can be customized according to customer needs.

Specifications

Name	Rectangle opening mold
Actual drawing of molding sample

Compressible sample shape	Rectangle, square, triangle
Mold material	Alloy tool steel:Cr12MoV
Hardness of die indenter	HRC60-HRC62
Sample size (≤)	≤10mm	≤20mm	≤30mm	≤40mm	≤50mm	≤60mm	≤70mm	≤80mm
Mold cavity depth	30mm	40mm	50mm		55mm		60mm
Mould dimensions	Φ53×120mm		Φ95×133mm		Φ127×150mm		φ180×180mm
	Φ73×133mm		Φ115×133mm		Φ153×150mm		Φ200×180mm
Mould weight	1.2kg	3.6kg	7kg	14kg	20kg	30kg	40kg	50kg
Calculation formula of die pressure	Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!
Mould remarks	Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold

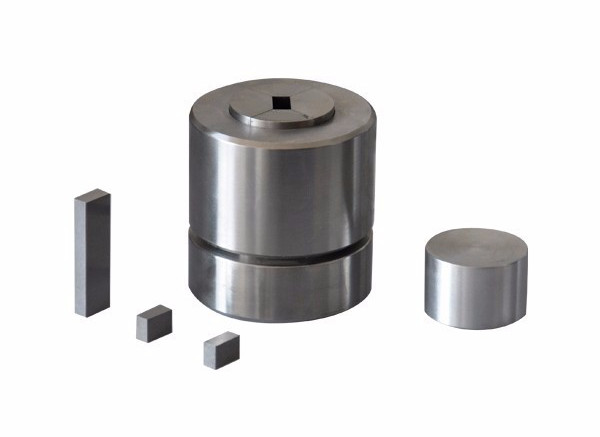

rectangle mold

battery equipment
