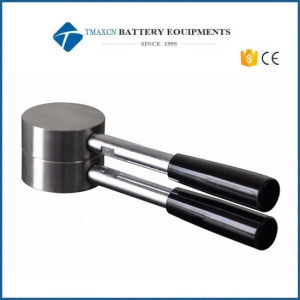

Lab Hydraulic Press Parts Round Flat Mold With Handle For Battery Electrode
Model Number:
TMAX-RFMHCompliance:
CE certificatePayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

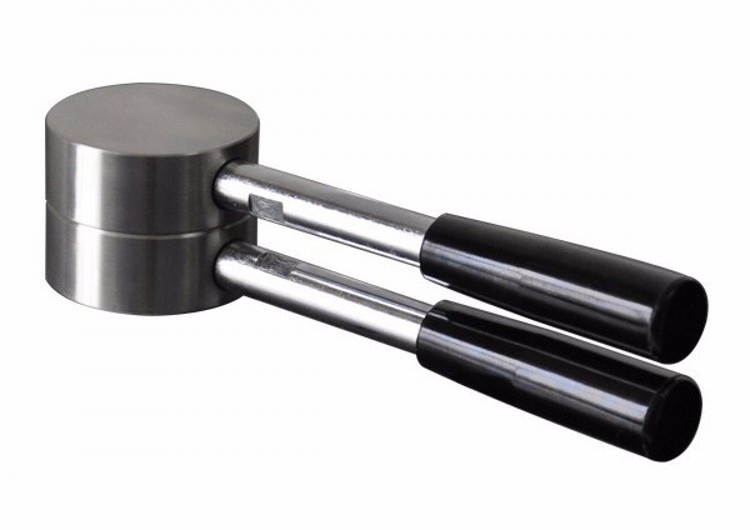

Lab Hydraulic Press Parts Round Flat Mold With Handle For Battery Electrode
The round flat mold is mainly used for the pressing of battery electrodes. The size of the pressing is 40~75mm in diameter and the thickness is 0.1~2mm. It can also be used in conjunction with a hot press.
Specifications
|
Name |
Round flat mold |
|
Actual drawing of molding sample |
|
|
Mold material |
Alloy tool steel: Cr12MoV |
|
Hardness of die indenter |
HRC60-HRC62 |
|
Sample size |
<Φ50mm |
|
Sample depth |
0.02-0.1mm |
|
Mould dimensions |
Ф200×50mm |
|
Mould weight |
3KG |
|
Calculation formula of die pressure |
Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure! |
|
Mould remarks |
Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold |
