Lab Hydraulic Press Parts Spherical Cylinder Mold

  • Model Number:

    TMAX-SCM
  • Compliance:

    CE certificate
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

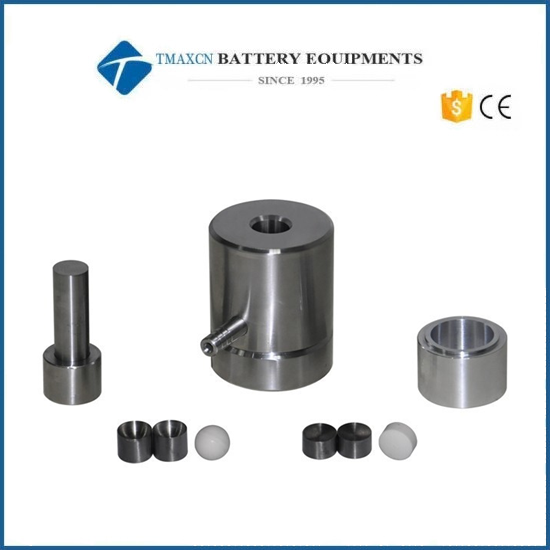

Lab Hydraulic Press Parts Spherical Cylinder Mold


This series laboratory spherical molds are often used in the pharmaceutical industry and small batch testing. Commonly used mold pressing size: diameter Ф3-20mm, height 1-20mm, bulk powder height: 15-35mm, used in laboratories and other industries to sample powder The compression molding is spherical or cylindrical. Other special mold sizes, specifications, shapes, materials, etc. can be customized according to customer needs.


Specifications

Name

Spherical mold

Actual drawing of molding sample

 spherical mold

Compressible sample shape

Round sphere, hemisphere, spherical cylinder, etc., such as tablets

Common mold specifications

Ф3, Ф6, Ф8, Ф10, Ф12, Ф15, Ф20mm, etc.

Mold material

Alloy tool steel: Cr12MoV (can be customized hard alloy steel)

Hardness of die indenter

HRC60-HRC62

Mold cavity depth

40mm

Mould dimensions

Ф53×120mm

Mould weight

1.4kg

Calculation formula of die pressure

Area of oil cylinder/area of mould×reading of pressure gauge = actual pressure of mould. Do not overpressure!

Mould remarks

Non standard customization, the above indicators are only for reference, can be customized according to customer needs of various specifications, materials, shapes of the mold
