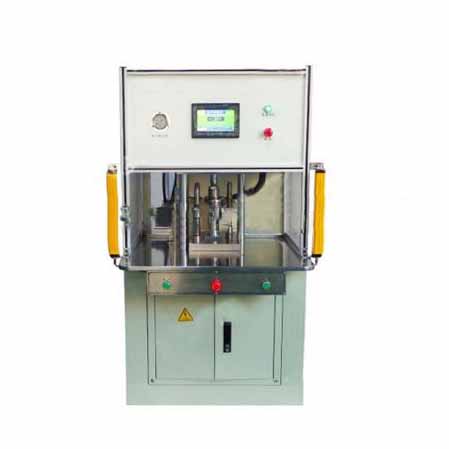

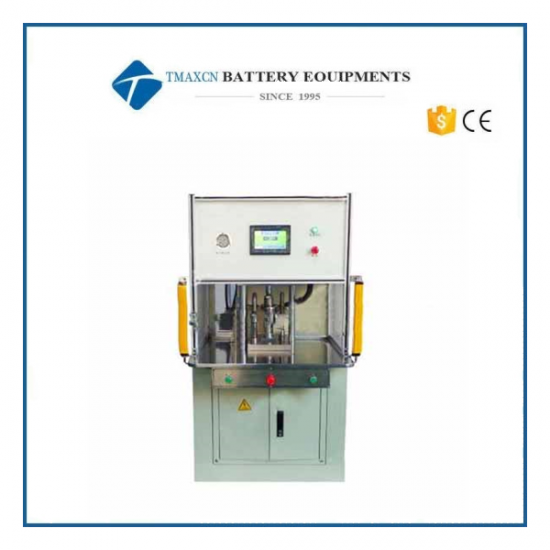

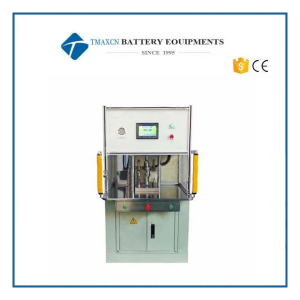

Lab Tabs Punching And Trimming Machine

  • Model Number:

    TMAX-DZ-260
  • Compliance:

    CE certificate
  • Warranty:

    1 year limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Lab Tabs Punching And Trimming Machine


Functional overview

Suitable for punching and molding of supercapacitor and lithium-ion power battery' s positive/negative pole pieces.

Functional characteristics

1.The device adopts PLC control system to ensure stable and reliable system operation, and simple operation.

2.Colorful touch screen LCD displays operation. Equipment parameter setting and browsing are concise and visualized.

3.Rack is welded by high-quality steel forgings, with firm welding and smooth polishing.

4.Equipped with safety light grid and protective door, with safe and reliable device operation.


Technical parameters

Pole piece burr

<0.05mm

Pole ear burr

<0.05mm

Accuracy of pole ear(L)

±0.5mm

Punching speed

 16pcs/min

Power source

AC220V/50Hz   Power:0.2kW

Overall dimensions (LxWxH)

800x870x1500mm

Weight

340kg
