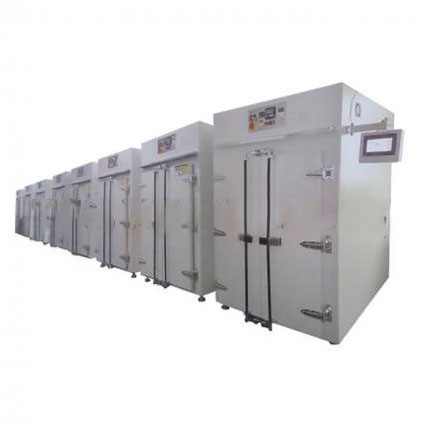

Lab Vacuum Drying System For Super Capacitor
Model Number:
TMAX-1PT-6NWarranty:
Two years warranty,one stop service,provide full solutionsPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Lab Vacuum Drying System For Super Capacitor
Functional overview
With forced ventilation function,adjustable air separating panels provied in the oven,and the temperature at each part is distributed evevly.
Functional characteristics
1.With forced ventilation function,adjustable air separating panels provied in the oven,and the temperature at each part is distributed evevly.
2.Equipment temperature is self-controlled.Adjust the upper limit of overtemperature protection to provide the second over temperature protection for the drying system.
3.The whole machine has compact structure,stable performance,small operation noise and is easy to clean.
4.Air duct is safe and reliable.Adopt high-quality bellows for connection,Electromagnetic components automatically switch and control,with simple operation and high production efficiency.
5.Adopt the imported PLC.Touch screen displays operation convenieniently and quickly.
6.A lot of hot air circulates in the oven,with high heat efficiency and energy saving.
7.Adopt unique radiation heating mode,so that the temperature distribution is even and stable in the oven, and the dry goods is heated sufficiently and evenly.
8.The process paramters of the device are recorded in data memory,and can be output in the form of Technical Parameters via USB or RS232 port.
Technical parameters
Power source |
AC380V/50HZ |
Temperature increase speed |
3~5℃/min(full loaded) |
Constant temperature range |
±2℃ |
The internal temperature difference |
≤2℃ |
Max.temperature of sealing ring can withstand |
250℃,1000h |
Temperature overshoot |
<3℃ |
Line leakage rate |
<1.0*10-7Pa m3/s |
Overall dimensions(L*W*H) |
1300*1350*2000mm |
