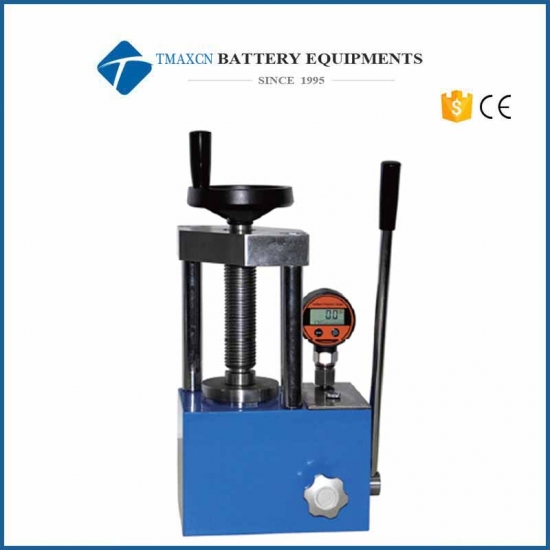

Laboratory 30T Protective Digital Manual Powder Tablet Roller Press Machine

  • Model Number:

    TMAX-Digital30T
  • Dimension(L*W*H):

    305*195*425mm
  • Net Weight:

    About 65kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Laboratory 30T Protective Digital Manual Powder Tablet Press Machine


Our tablet presser has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on.In addition, this product can also be used with Fourier infrared spectrometer.Fluorescence spectrometer supporting sample preparation, can replace similar imported products


Design Advantages

a.Small size, light weight,No oil, easy to carry.

b.High speed steel imported from Japan

c.Digital display pressure gauge0.1MPa,Pressure control is more accurate.

d.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.

E.Special plunger, special custom sealed structure, good sealing effect, no oil leakage

F.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.

G.One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.

H.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

I.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage

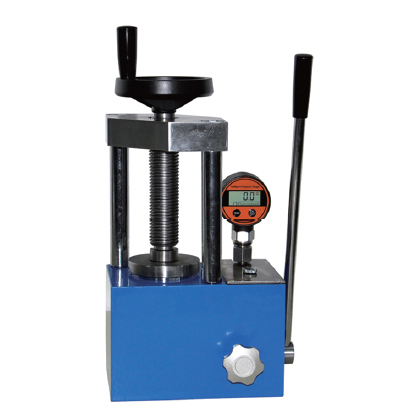

 Digital Manual Press

Sheet breakdown structure diagram

 Operation



Technical Parameters

Product Name

Lab Pressing Machine

Type

TMAX-Digital30T

Pressure range

0-30T(0-31.5MPa)

Piston diameter

Chrome plated cylinder 110 mm

Overall structure

Unsealed connection of equipment to reduce leakage

Pressure gauge

Digital Display0.00-40.00MPa

Maximum piston stroke

40mm(T)

Protecting mask

Plexiglass

Pressure stability

≤1MPA/10Min

Worktable diameter

120mm(D)

Number of columns

4 pillars

Column spacing

120*160mm

over dimension

305*195*425mm

weight

65kg


Conversion

ctual pressure

System pressure

Double display pressure gauge

1[Tons]

0.75[MPa]

3[Tons]

2.2[MPa]

5[Tons]

3.7[MPa]

10[Tons]

7.5[MPa]

12[Tons]

9[MPa]

15Tons]

11.3[MPa]

20[Tons]

15[MPa]

30[Tons]

22.5[MPa]

40[Tons]

30[MPa]

It is suggested that the general system pressure should not exceed 35MPa, otherwise it will affect the service life of the equipment.
