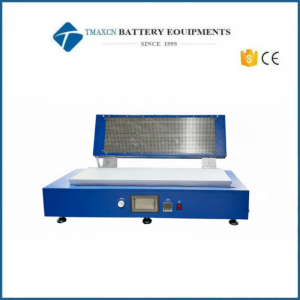

Laboratory Automatic Doctor Blade Coating Machine with Drying Cover& Vacuum Function
Model Number:
TMAX-TMH800Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days

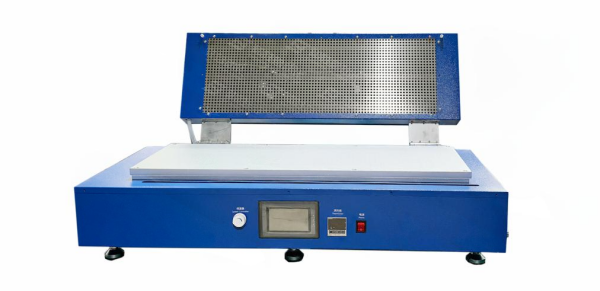

Laboratory Automatic Doctor Blade Coating Machine with Drying Cover& Vacuum Function
The automatic coating machine is widely used in high-temperature coating research, including ceramic films, crystal films, battery material electrode, and specialized nano-films. It is designed to support scientific advancements in film formation under high-temperature conditions.
Key Features
· Adjustable coating speed ranging from 0 to 100mm/sec.
· Digital temperature-controlled drying system, with a maximum working temperature of 150°C.
· Adjustable stroke range between 10mm and 800mm, controlled by a travel switch.
· Vacuum aluminum plate, enabling quick placement and removal of substrates.
· Equipped with an adjustable film applicator for precise coating control.
Technical Specifications
|
Parameter |
Specification |
|
Coating Speed |
0-100 mm/sec (adjustable) |
|
Maximum Stroke |
800mm |
|
Vacuum Plate |
Equipped with a vacuum aluminum plate |
|
Vacuum Plate Size |
865mm (L) × 200mm (W) × 30mm (H) |
|
Blade Adjustable Range |
0.01 - 3.5mm |
|
Heating & Drying System |
Room temperature to 150°C, digital temperature controller, accuracy ±1°C |
|
Power Supply |
220V / 50Hz |
|
Machine Weight |
100kg |
|
Machine Dimensions |
900mm (L) × 310mm (W) × 930mm (H) |
1. We supply machines with battery technology support.
2. We supply full set of lithium battery equipment for lab research, pilot scale research and production line.
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
