Laboratory Battery Mechanical Impact Tester Machine For Lithium Battery Safety Testing
Model Number:
TMAX-HSKT-10Compliance:
CE certificateWarranty:
One Year limited warranty with lifetime supportPlace of Origin:
ChinaPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

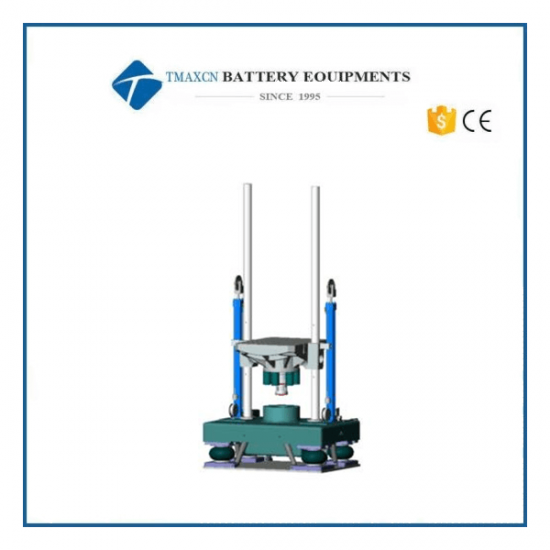

Laboratory Battery Mechanical Impact Tester Machine For Lithium Battery Safety Testing
Introduction
HSKT series mechanical impact testing machine is mainly suitable for impact resistance testing in electronic products, aerospace, shipbuilding, military industry, auto parts, transportation and other fields. Can carry out half sine wave shock test.
Main features
1. The lifting mechanism is a precision screw, driven by a precision motor, and guided by two precision guide pillars to ensure smooth platform lifting and precision to ensure accurate impact data.
2. The impact base adopts the structural design of airbag + shock absorber, which will not affect the floor structure during impact.
3. The impact frame is designed without resonance, and the impact data is accurate.
4. Adopting pneumatic brake and strong friction brake mechanism, no secondary impact function;
5. Equipped with a pneumatic energy storage cylinder to ensure the stable pressure of the brake mechanism and the integrity of the test data.
6. Single-channel data measurement collection, acceleration data measurement, storage, report printing, data callback, database management and other functions are adopted.
Technical parameter
Device parameter |
|
Work platform |
250 mm×200 mm |
Maximum load |
10 kg |
Peak acceleration |
20---2000G |
Pulse duration |
0.5---18ms(can be customized) |
Equipment size (L×W×H) |
650×690×2375mm |
Equipment weight |
850 kg |
Electrical requirements |
AC220V±10%, 50Hz, 1KVA & 0.5—0.7MPa |
Testing system |
|
Input channel |
2 pcs |
Sampling frequency |
192KHz |
Input form |
Voltage, charge |
Coupling method |
AC, DC, ICP |
Pulse duration |
50-1ms |
voltage range |
-10V--+10V |
Supported standards |
National standard, U.S. military standard, national military standard, user-defined |
Impact waveform |
Half sine |
Operating system |
Microsoft Windows7/10 |
Communication Interface |
USB2.0 |
System acceleration sensor |
|
Brand |
B&W |
Model |
22100 |
Output method |
Charge type |
Sensitivity |
3.93Pc/g |
Frequency Range |
0.5---12KHz |
Acceleration range |
±2500G |
Working environment |
-40~+160℃ |
