Laboratory Compact Bar Coater With Infinitely Variable Speed and Doctor Blade

  • Model Number:

    TMAX-MS-ZN300
  • Dimension(L*W*H):

    665*400*430mm
  • Net Weight:

    About 33kg
  • Compliance:

    CE certificate
  • Warranty:

    One Year limited warranty with lifetime support
  • Delivery Time:

    3 Days
contact now
DESCRIPTION

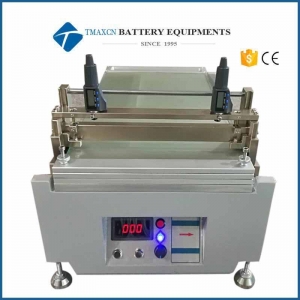

Laboratory Compact Bar Coater With Infinitely Variable Speed and Doctor Blade



The biggest advantage of the laboratory small coater is that it can repeatedly and continuously produce a smooth and flawless test sample. It is convenient for the experimenter to accurately coat on different substrates. The error caused by human factors such as coating speed and pressure is reduced and eliminated. The coating head is made of stainless steel U-shaped scraper, which simulates the large coating head to ensure that the experimental product matches the quality of the production coating. The coating head can be opened quickly at 90 degrees to clean the blade after each experiment.



The laboratory small coating machine all adopts high-quality accessories, and the price is excellent and cheap. It has won the favor of many multinational enterprise R&D institutions and many well-known universities at home and abroad. By controlling the speed and the stable pressure to ensure the coating effect, to ensure the uniformity of the coating and the smoothness of the laboratory, the biggest features of the small coater can be in the plane of paper, plastic, metal, PVC, PET, cloth, aluminum alloy plate, etc. The materials were subjected to coating experiments.



specifications

Speed: 0-200 cm per minute, can be set by yourself, stepless speed regulation.

Length: can be set according to the length of different materials

Coating speed: digital display

Accuracy error: ±0.003MM (scraper) ±0.002MM (wire bar)

Size: 300*400MM

Coating thickness: 0.005-5MM (the thinnest 5 micron wet film)

Machine volume: 665*400*430 (length * width * height)

Machine weight: net weight: 33KG

Coating roller: length: 400MM material / stainless steel (can be changed thickness)

Scraper material: stainless steel

Power source: voltage 220V 50HZ

Power: 48W

bar coater


 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
