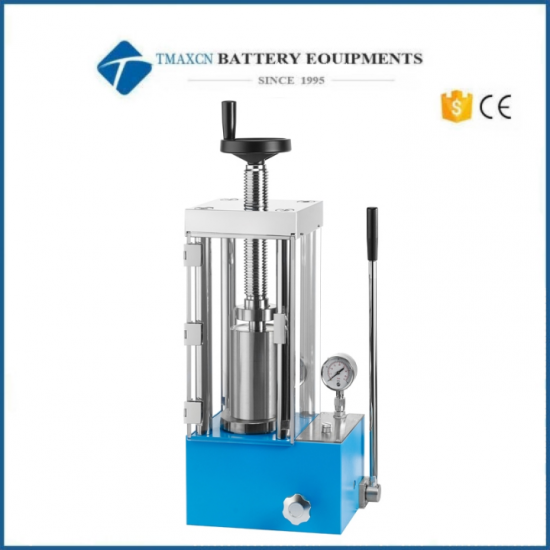

Laboratory Compact Cold Isostatic Press 20T Manual CIP Hydraulic Pressing Machine upto Max.300 Mpa

  • Model Number:

    TMAX-CIP-20J
  • Dimension(L*W*H):

    305*195*600mm
  • Net Weight:

    About 100kg
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Laboratory Compact Cold Isostatic Press 20T Manual CIP Hydraulic Pressing Machine upto Max.300 Mpa


TMAX-CIP-20J is a CE Certified and the smallest cold isostatic pressing (CIP) machine used for laboratory powder pressing. It has a 30mm ID hydraulic chamber made by ultra strength stainless steel, which can provide isostatic pressure up to 300 Mpa via a 20T manual hydraulic press. It is an excellent tool to prepare high-density compound pellet and small diameter rod. CIP-20J has the small footprint and can be placed in glove-box to prepare air-sensitive materials. A plastic protection cover is included.


20T cold isostatic Pressing machine

Application

Laboratory CIP Pressing

Hydraulic pressing range

0~20T(0-21MPa)

Piston Diameter

O.D110mm

Structure

oil tank,machine base No sealing connection, no oil leak point

Pressure gauge

Digital pressure gauge

Maximum piston distance

40mm

Environment temperature

10~40 degree

CIP Pressure range

0~300MPa

CIP Tank dimension

O.D30*120mm

Outer dimension

305*195*600mm

Gross Weight

100Kg

Cold Isostatic Press

Pressure conversion

Real Pressure

System Pressure

Tank inner pressure

1.7T

1.86MPa

25MPa

3.5T

3.72MPa

50MPa

5T

5.57MPa

75MPa

7T

7.43MPa

100MPa

8.7T

9.29MPa

125MPa

10.5T

11.2MPa

150MPa

14T

14.8MPa

200MPa

17.5T

18.6MPa

250MPa

21T

22.3MPa

300MPa


Main Features

a).Small size, light weight,No oil, easy to carry.
b).High speed steel imported from Japan
c).Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
d).The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
e).Special plunger, special custom sealed structure, good sealing effect, no oil leakage
f).The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
g).One one main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
h).Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.
i).The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage

Machine Parts: Rubber Mold, can be used recycle


Main Features: CIP Stainless steel tank


Machine Parts: Sealing cap
