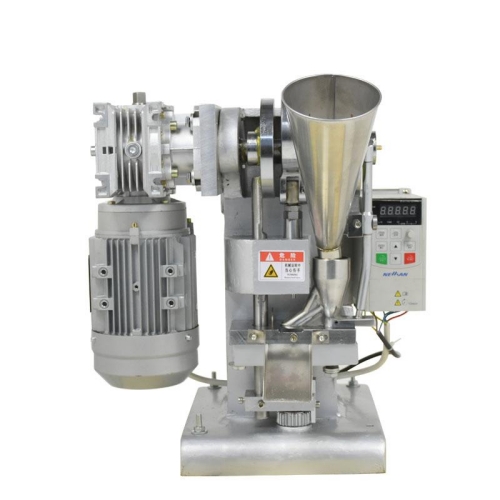

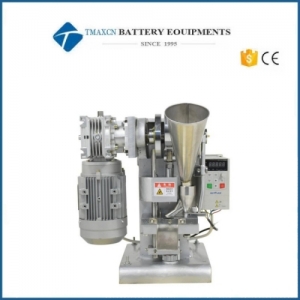

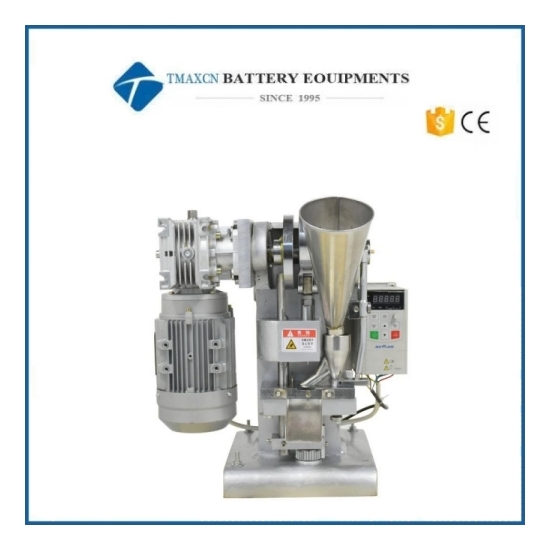

Laboratory Electric Handheld Single Punch Tablet Press Equipment
Model Number:
TMAX-TDP-2Compliance:
CE certificateWarranty:
Two Year Limited Warranty With Lifetime SupportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 Days
Laboratory Electric Handheld Single Punch Tablet Press Equipment
Introduction
The TDP-2 single-punch tablet press (variable frequency speed regulation) is a small electric tablet press equipped with a frequency converter, which can adjust the production speed. It can press various granular and powdered raw materials into round tablets of different sizes or various irregular-shaped tablets. It is an ideal equipment for the trial production and small-scale production of Chinese and Western medicine tablets, sugar tablets, calcium tablets and tablets for other industries in pharmaceutical factories, food factories, chemical plants, home clinics, laboratories, schools and research institutions. This machine is equipped with a set of punches and dies. The filling depth and pressing thickness of the material can be adjusted, that is, the weight, thickness and hardness of the product can all be adjusted. As long as different dies are replaced, different products can be pressed. All controllers and operating components are rationally laid out. Worm gear transmission, low noise and high safety factor; The film output speed is adjustable, making it suitable for high-precision requirements, laboratory trial production, etc.
Technical parameter
|
Tablet pressing pressure (Kn) |
15 |
|
Tablet diameter (mm) |
3-12 |
|
Filling depth (mm) |
0-12 |
|
Tablet thickness (mm) |
0-6 |
|
Production capacity (pcs/h) |
4000 |
|
Motor power (Kw) |
0.75 |
|
Overall dimensions (mm) |
700*370*800 |
|
Overall machine weight (Kg) |
45 |
|
Packaging weight (kg) |
60 |
