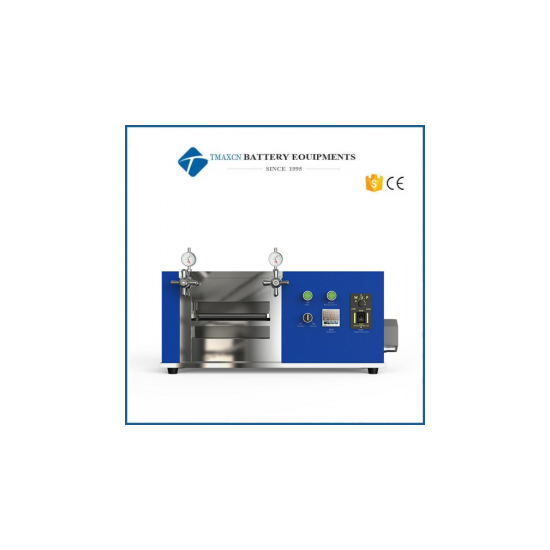

Laboratory Electric Hot Rolling Press Calendering Machine with Variable Speed&Ar Gas Compatible

  • Model Number:

    TMAX-JS
  • Compliance:

    CE certificate
  • Warranty:

    Two Years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

Laboratory Electric Hot Rolling Press Calendering Machine with Variable Speed&Ar Gas Compatible


This type of roller press is specially used for electric rolling of small lithium electrode sheets, a small
amount of precious metal materials such as gold and silver, copper and aluminum, and other non-ferrous materials. It is especially suitable for thinning and increasing density of lithium battery plate, which is a clean energy material. The machine adopts gear drive to realize roll pressing. The rolling thickness can be adjusted and used conveniently. It can realize percentile meter to directly control the material pressing thickness



Working Principle

The equipment drives high hardness pressing roll by decelerating motor, and adjusts the gap of pressing roll mechanically, so that the pole sheet is pressed and formed, and the quality density of the pole sheet is increased.



Specifications

Model

TMAX-JS

Working Power

2400W

Voltage

220V/110V selectable

Effective Calendering Width

100-400mm selectable

Roller Size Optional

100mm Dia. x 100mm W

100mm Dia. x 200mm W

100mm Dia. x 300mm W

100mm Dia. x 400mm W

Or customized roller diameter and rolling width upon request

Hardness of roll surface

HRC62, imported 9CR2MO steel roll material

Calendering Thickness

(Effective clearance)

0~3 mm adjustable

Dial Gauge Accuracy

0.01mm

Rolling Speed

CVT, linear speed 0-8.5 m/min adjustable

Roller Surface Finish Degree

Hard chromium plating never rusts

Roll surface quenching depth

5mm

Max. Pressure

3Ton

Heating Temperature

· 150°C Max. (< 1hr)

· 130°C Continuously

· Recommended Heating Rate: 1.3°C/minute

The heating temperature can be customized

Operation environment

 Ar gas compatible

Temperature Control Accuracy

+/-1°C

Warranty

One year warranty with life time technical support


battery roller press machine

battery roller press machine

roller press machine

heat roller press machine

electrode calendering machine

Electric hot rolling press machine

roller machine

roller press machine

pouch cell assembly machine




 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
