Laboratory Electric Rolling Press Machine Calender Machine

Model Number:
TMAX-DG
Compliance:
CE certificate
Warranty:
Two Years limited warranty with lifetime support
Payment:
T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:
3 days

contact now

Email : David@battery-equipments.com
Wechat : Wechat 13506084915

DESCRIPTION

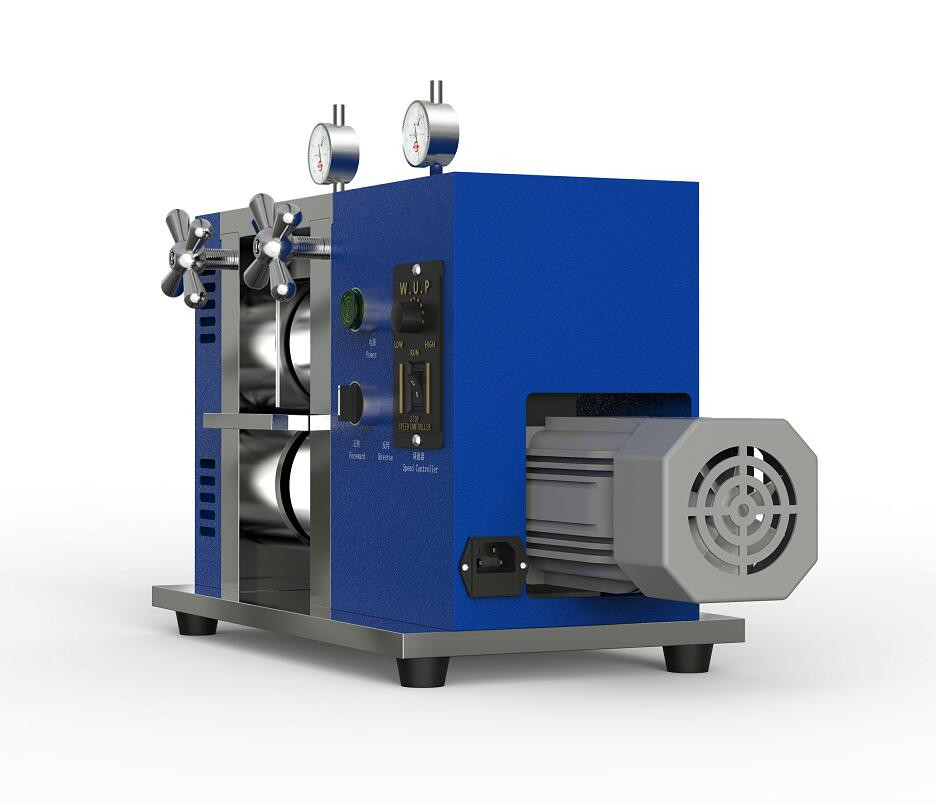

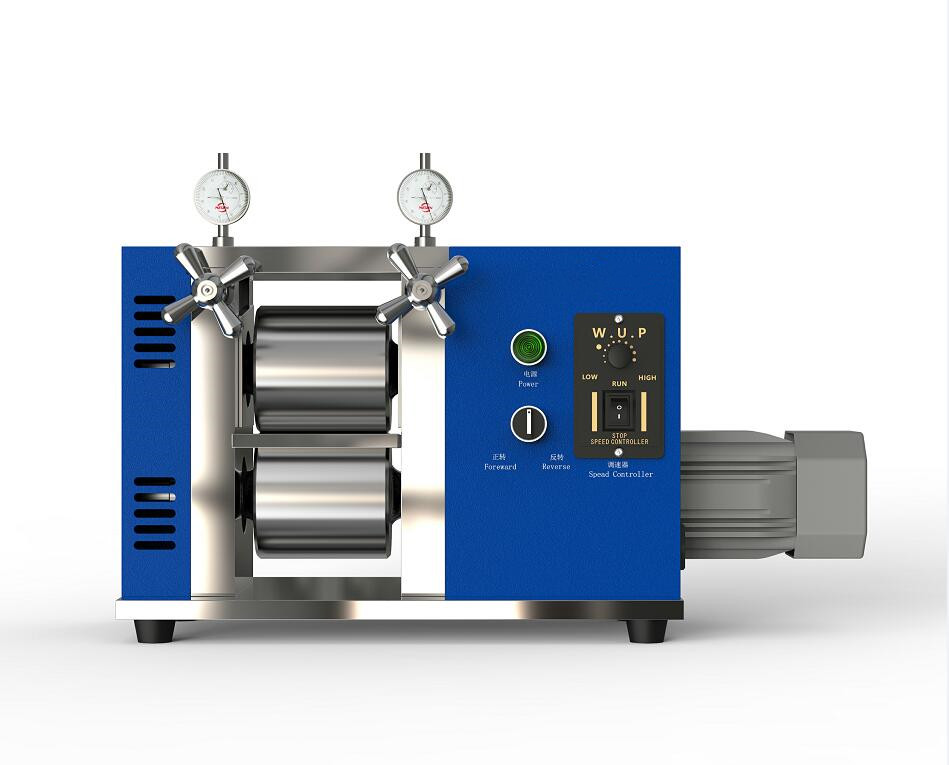

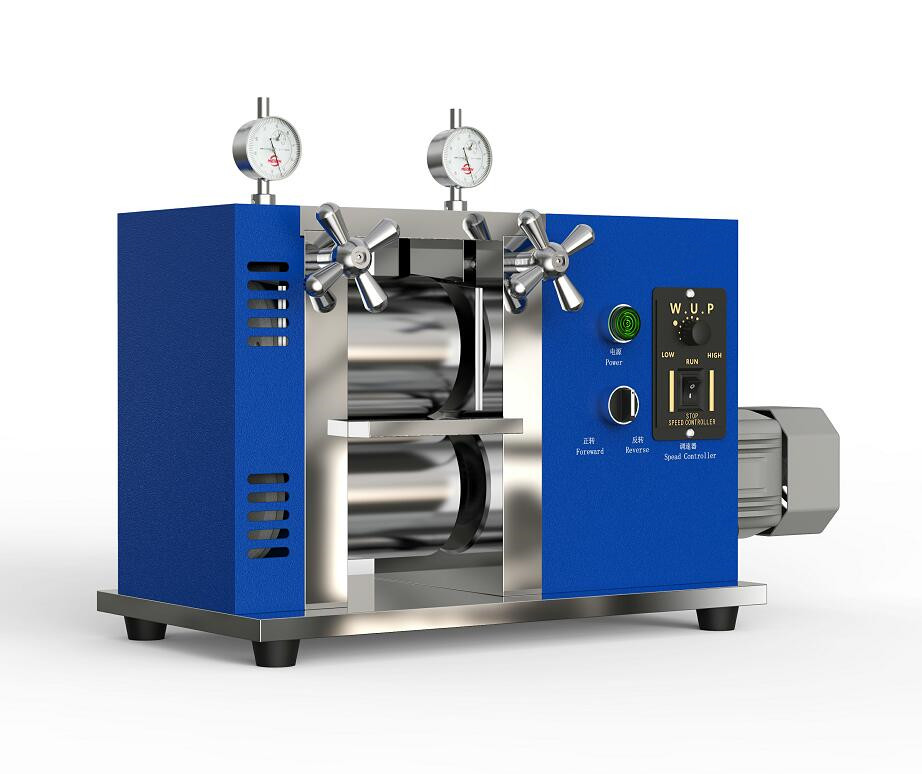

Laboratory Electric Rolling Press Machine Calendering Machine

This type of roller press is specially used for electric rolling of small lithium electrode sheets, a small

amount of precious metal materials such as gold and silver, copper and aluminum, and other non-ferrous materials. It is especially suitable for thinning and increasing density of lithium battery plate, which is a clean energy material. The machine adopts gear drive to realize roll pressing. The rolling thickness can be adjusted and used conveniently. It can realize percentile meter to directly control the material pressing thickness

Main Features

*The roll has high hardness, and the surface is plated with hard chrome, the hardness can reach HRC62 and it is anti-rust.

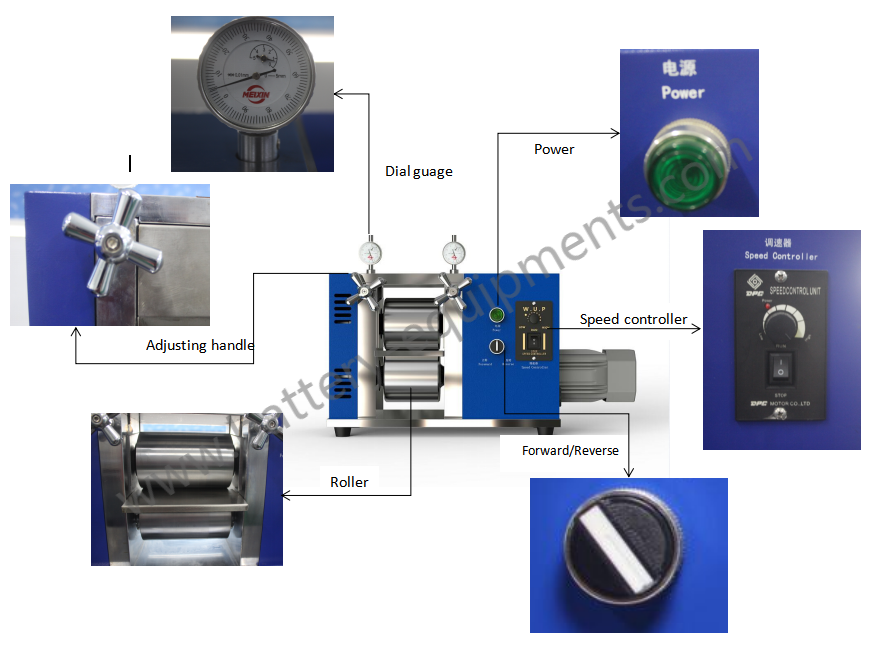

*Adopt the inclined block to adjust the gap of the tablet, which has good self-control and high adjustment accuracy.
*High rolling precision, roller cylindricity≤±2um.
*Vertical design to facilitate the feeding and rolling of strip materials.
*Using gear meshing rotation to realize the roller pressing.
*The thickness and speed of the tablet can be adjusted, and the appearance is exquisite and beautiful.
*Electric rolling, forming automation, can be reversed operation.
*Small size, easy to operate, flexible and quick to use.

Specifications

Model	TMAX-DG
Voltage	220V/110V selectable
Effective Calendering Width	100-400mm selectable
Roller Size Optional	100mm Dia. x 100mm W 100mm Dia. x 200mm W 100mm Dia. x 300mm W 100mm Dia. x 400mm W Or customized roller diameter and rolling width
Hardness of roll surface	HRC62, imported 9CR2MO steel roll material
Gap distance (rolling thickness)	0~2 mm adjustable

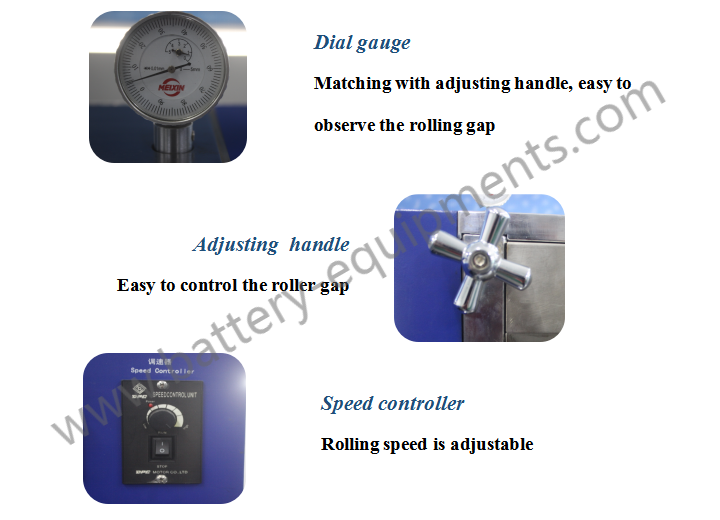

Dial Gauge Accuracy	0.01mm
Rolling Speed	0～40mm/s adjustable
Roller Surface Finish Degree	Hard chromium plating never rusts
Roll surface quenching depth	5mm
Max. Pressure	3Ton
Operation environment	Ar gas compatible
Roller finish	Above 0.4
Standard configuration	1 set of hexagon wrench 2 dial gauges 1 feeler gauge
