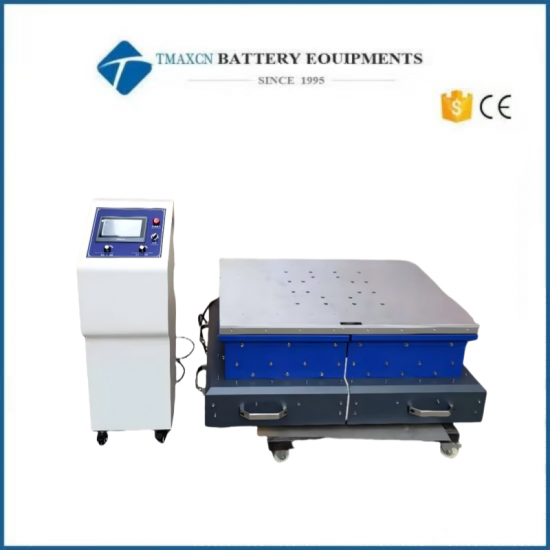

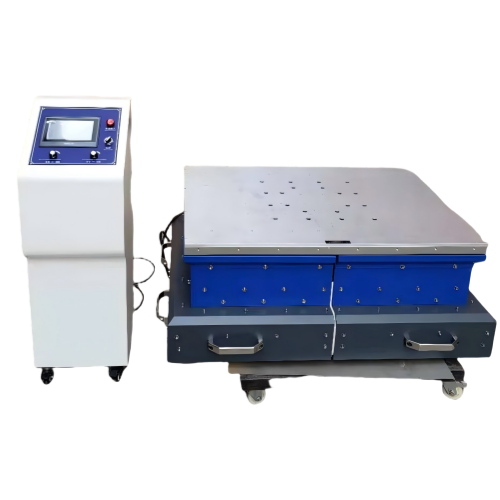

Laboratory Electromagnetic Uniform Vibration Test Machine

Laboratory Electromagnetic Uniform Vibration Test Machine

1. Product Overview

This machine for the application of uniform vibration and the product test object after several vibration and can reach the ideal standard of a test, vibration test machine is to improve your jump into the high quality of the field, simulate the product in the manufacturing, assembly, transportation, and use of the various vibration environment, to identify the product ability to endure environmental vibration, suitable for electronics, electromechanical, photoelectric, lithium, toy packaging research, development, quality management, manufacturing and other industries.

2. Product Specifications (free collocation)

1. Vibration frequency:

（a）5~200HZ

（b）5~600HZ

（c）5~2000HZ

2. Vibration mode:

(a) perpendicular

(B) Vertical + horizontal

(C) Vertical + horizontal + front and rear

3. Countertop size:

（a）500*500mm

（b）750*750mm

（c）1000*1000mm

3. Technical Indicators

1. Controller: touch screen controller

Vibration type: fixed frequency, frequency modulation, sweep frequency, multistage programming

2. Maximum load: 50 KG

3. Vibration power: 3.5kw

4. Amplitude range: 0~5 mm

5. Maximum acceleration: 20g

6. Vibration wave form: sine wave

7. Time control: time free setting

8. Power supply voltage: 220V 50HZ

9. Maximum current: 30A
