Laboratory Press Machine With Built In Hydraulic Pump & Protection Cover

  • Model Number:

    TMAX-24T
  • Dimension(L*W*H):

    170mm(L) x 340mm(W) x 480mm(H)
  • Net Weight:

    About 56kg
  • Compliance:

    CE certificate
  • Warranty:

    Two years limited warranty with lifetime support
  • Delivery Time:

    3 days
contact now
DESCRIPTION

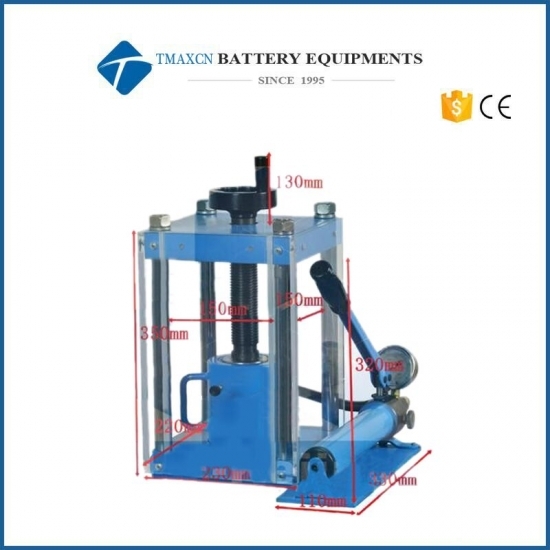

Laboratory Press Machine With Built In Hydraulic Pump & Protection Cover



Model YLJ-24 is a desktop dry pressing machine up to 24 metric tons for materials/chemistry research laboratories to prepare the compound ceramic sample.

YLJ-24 has built in hydraulic pump with auto return function and transparent protection shield.


Max. Pressure

24 Metric Tons

Bottom Hydraulic Cylinder Travel Distance

0 - 25 mm

Top Support Screw Adjustable Height

130 mm

Protection Cover


 ·         Polycarbonate Safety Shield is included in standard package.

·         Note: Door must be closed during use

Dimension of Working Space Under Frame


D1: 120mm
D2: 110mm
H1: 200mm
H2: 170mm

Dimensions of Machine

170mm(L) x 340mm(W) x 480mm(H)

Net Weight of Machine

56 Kg (121 lbs)

Shipping Dimensions

40"(L) x 32"(W) x 36"(H)

Shipping Weight

190 lbs

Press Dies

Pressing dies with various diameters are available upon request at extra cost

Application Notes

Caution: Customers must always wear protection goggles during operation !

Warranty

·         The pressing machine was quality inspected, lifetime support is provided

·       Two years limited warranty with lifetime support

Hydraulic Press Machine





 battery equipment

1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.


1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
