Laboratory Programmable Electric Coin Cell Crimper Crimping Machine
Model Number:
TMAX-160SCompliance:
CE certificateWarranty:
Two Years limited warranty with lifetime supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days
Laboratory Programmable Electric Coin Cell Crimper Crimping Machine
Features
*Touch screen operation, easy to set parameters, high degree of automation;
*The sealing pressure value can be set and displayed.
*If there is no obstacle (skateboard), the glove box can pass through the transition bin directly, with small volume and convenient operation;
*Adopt electric drive, no vibration and no leakage of battery seal;
*The precise mold design ensures the accuracy and reliability of sealing and forming, and the firm steel structure design ensures stable and safe use;
*Small size, easy to operate, can be placed in glove box for operation;
*It has the advantages of small volume, convenient operation and accurate molding;
Technical Parameter
|
Power |
110 - 240V AC 50/60Hz for universal use |
|
Die Set & Compatibility |

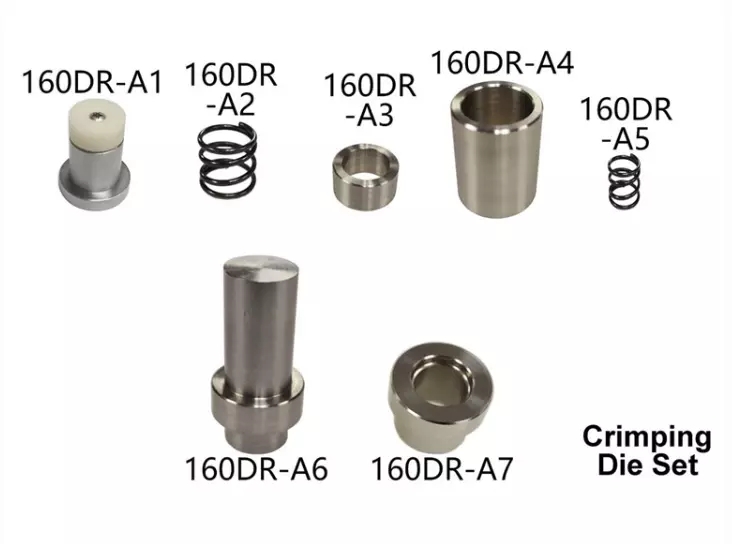

Assembling dies for crimping CR2032, CR2025, & CR2016 coin cells (Optional CR2325, CR2450 die sets are available upon request). |
|
Crimping pressure |
max. 1000kg adjustable |
|
Control mode |
Touch screen |
|
Crimping stroke |
20mm |
|
Structure |
Heavy Duty Steel Platform |
|
Machine dimensions |
L250mm*W185mm*H450mm |
|
Machine weight |
25kg |
|
Warranty |
Two years limited warranty with lifetime support |
|
Maintenance Notes & Warnings |
1. Electrolytes are highly corrosive materials.The die set must be cleaned with alcohol after each use to avoid corrosion 2. The PTFE die (found at the top die) ejects the cell casing after crimping via spring loaded pressure. Do NOT over tighten the pressure adjustment knob to avoid damaging this PTFE die. |
