Large Dual Rollers Battery Adjustable Roller Heat Press Coating Machine

  • Model Number:

    TMAX-DYG-703A
  • Input Power:

    5.5KW
  • Net Weight:

    55kg
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Payment:

    L/C D/A D/P T/T Western Union
  • Delivery Time:

    3 days
contact now
DESCRIPTION

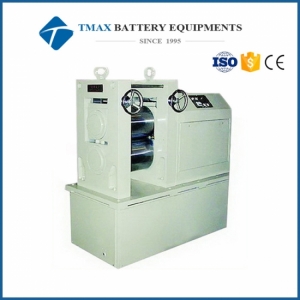

Large Dual Rollers Battery Adjustable Roller Heat Press Coating Machine



TMAX-DYG-703Asystem battery roll press machine is a high precision Mechanical roller press machine. It has dual rollers of 300mm dia.* 300mm width and Dia400mm*400mm width model.. Thisbattery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing.


2 This model battery roll press machine is pressure adjustable roll press, The operator adjust the press pressure to get best effect battery electrode density according to battery design.


Specifications:

Model

TMAX-DYG-703A-300

TMAX-DYG-703A-400

Type

Vertical 2 Roll Press type

Source voltage

AC110V/220V 50/60HZ

Power

5.5KW

7.5KW

Warranty

One year limited warranty with lifetime support

Roller diameter

Dia * width=300*300mm

Dia * width=400*400mm

Speed

4r.p.m

8r.p.m

Pressure

100T, about 980KN

Rolling press mode

Preloading suppression way; Preload pressure by a manual handle

 Roller drive way

Gear to gear transmission, planetary gear reducer gear motor drive

Max rolling gap adjustment

0-2mm adjustable

Structure

 1 Roll surface roughness, surface roughness of 0.4um

  2 Roll hardness: HRC62-65, roll conditioning: HB280-300,

     18mm or higher quenching depth and roll cylindricity less than 0.003 mm

  3 Adopt p52 precision bearings

  4 Roll gap adjusting : automatic locking device, 0-2 mm is adjustable

Dimension(L*W*H)

1380*5600*1480mm

1819*1000*1817mm

Weight

About 2.8T

About 4T



Heat Press Coating Machine

Heat Press Coating Machine

Heat Press Coating Machine




 battery equipment


1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.



1 Standard exported package : Internal anticollision protection, external export wooden box package
2 Shipping by express, by air, by sea according to customer's requirements to suggest the most suitable shipping mode
3 Responsible for the damage during shipping process, change the damage part for free
4 Supply with suitable voltage input and power plug according to customer's country requirements.
5 Supply with CO, ECO, FORM A, FORM E and any other original certificate for import custom clearance and tax relief.
