Large Dual Rollers Battery Adjustable Roller Heat Press Machine
Model Number:
TMAX-DYG-703AInput Power:
5.5KWNet Weight:
55kgCompliance:
CE CertifiedWarranty:
One years limited warranty with lifetime technical supportPayment:
T/T, Credit Card, Paypal, LC, Western UnionDelivery Time:
3 days

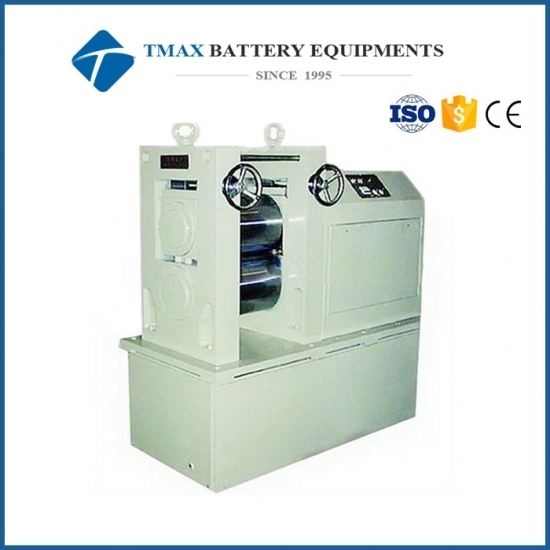

Large Dual Rollers Battery Adjustable Roller Heat Press Machine
1 TMAX-DYG-703A system battery roll press machine is a high precision Mechanical roller press machine. It has dual rollers of 300mm dia.* 300mm width and Dia400mm*400mm width model.. Thisbattery roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying for producing.
2 This model battery roll press machine is pressure adjustable roll press
The operator adjust the press pressure to get best effect battery electrode density according to battery design.
Specifications:
|
Model |
TMAX-DYG-703A-300 |
TMAX-DYG-703A-400 |
|
|
Type |
Vertical 2 Roll Press type |
||
|
Source voltage |
AC110V/220V 50/60HZ |
||
|
Power |
5.5KW |
7.5KW |
|
|
Warranty |
One year limited warranty with lifetime support |
||
|
Roller diameter |
Dia * width=300*300mm |
Dia * width=400*400mm |
|
|
Speed |
4r.p.m |
8r.p.m |
|
|
Pressure |
100T about 980KN |
||
|
Rolling press mode |
Preloading suppression way; Preload pressure by a manual handle |
||
|
Roller drive way |
Gear to gear transmission planetary gear reducer gear motor drive |
||
|
Max rolling gap adjustment |
0-2mm adjustable |
||
|
Structure |
1 Roll surface roughness surface roughness of 0.4um 2 Roll hardness: HRC62-65 roll conditioning: HB280-300 18mm or higher quenching depth and roll cylindricity less than 0.003 mm 3 Adopt p52 precision bearings 4 Roll gap adjusting : automatic locking device 0-2 mm is adjustable |
||
|
Dimension(L*W*H) |
1380*5600*1480mm |
1819*1000*1817mm |
|
|
Weight |
About 2.8T |
About 4T |
|
