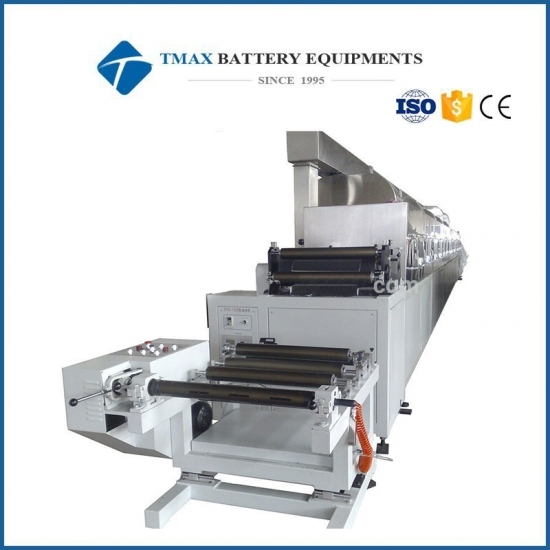

Large Roll to Roll Coating Machine with 6 Meter Drying Oven For Lithium Ion Battery

  • Model Number:

  • Input Power:

  • Compliance:

    CE certificate
  • Warranty:

    1 year
  • Payment:

    T/T, Credit Card, Paypal, LC, Western Union
  • Delivery Time:

    3 Days
contact now

Large Roll to Roll Coating Machine with 6 Meter Drying Oven For Lithium Ion Battery

Technical Parameter

The coating machine TMAX-DYG-132MS is a single face continuous and Intermittent coating machine mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous and Intermittent coating mode, is mainly used for lithium battery pilot scale production line.


Lithium ion Battery Coating Machine TMAX-DYG-132MS

Source voltage

AC 220V/110V, 50HZ/60HZ



Suitable material thickness

Aluminum foil : 0.01-0.03mm

Copper foil : 0.006-0.020mm

Max electrode width



One Year limited warranty with lifetime support

Mechanical tape speed


Coating speed

0.6~8m/min, adjustable

Air compression


Coating mode

Single face continuous and intermittent coating

Equipment length

8.5M (3M*2Section oven+2.5M)

Equipment function

1 PLC intelligent control equipment, has a continuous convex point easily

   eliminate clearance

2 Use hot air circulation heating mode, high thermal efficiency

3 Coating method : continuous and intermittent coating

   3.1 The first face automatic fixed-length block coating

   3.2 The second face automatic tracking the first face composite coating

   3.3 Reverse coating interval length distance
4 Coating length : More than 50mm can set clearance or continuous coating
   The minimum coating length : 8mm, Minimum interval length : 5mm,

   The minimum track length : 50mm

5 Double-sided dry thickness accuracy : ≤±0.003mm
  5.1 Both the front and coated alignment error : ≤±0.5mm

  5.2 Each length error : ≤±0.5mm
  5.3 Each paragraph width error : ≤±0.5mm
  5.4 Trailing : ≤±0.5mm
6 Volume release tension can be adjusted continuously : 0~25N

7 Precision rectification controller : ±0.2mm(Re)
8 Core winding diameter : 3 inches, USES the gas rose axis, Max 300kg

9 Baking mode :

  9.1 Hot wind drying, hot wind circulation,
  9.2 Electric heating,

  9.3 Hot air volume can be adjusted, air volume can be adjusted
