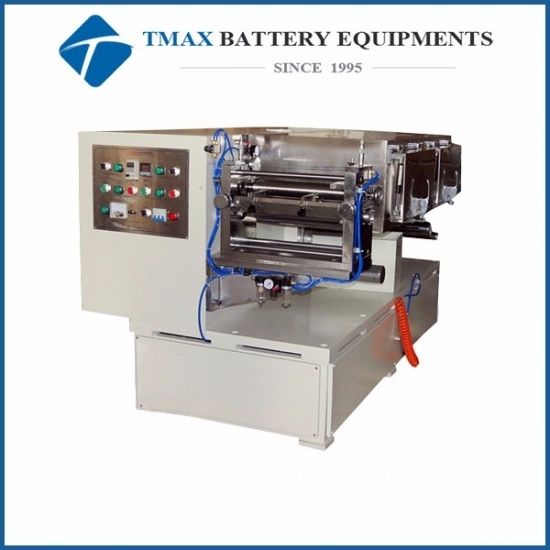

Large Roll to roll electrode coating laminating machine

  • Model Number:

    TMAX-135
  • Input Power:

    6500W
  • Dimension(L*W*H):

    1650*1400*2200mm
  • Compliance:

    CE Certified
  • Warranty:

    One years limited warranty with lifetime technical support
  • Delivery Time:

    30 days
contact now
DESCRIPTION

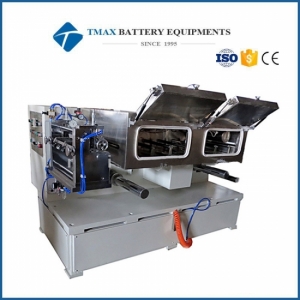

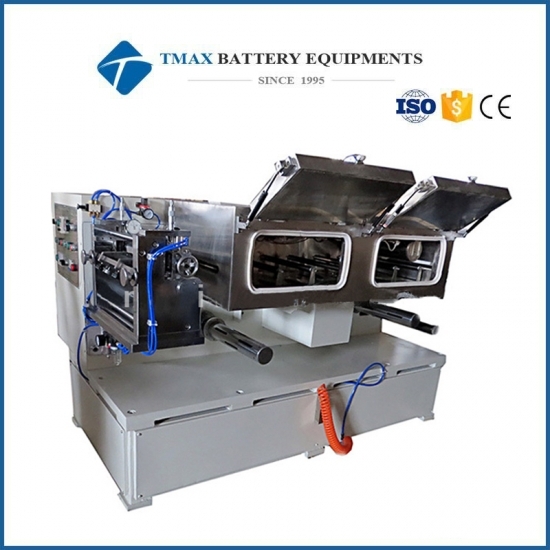

Large Roll to roll electrode coating laminating machine



DESCRIPTION

The Automatic Coating Machine TMAX-DYG-135 is mainly used for Slurry drying process of lithium battery electrode coating. The battery coating machine adopts continuous coating mode, is mainly used for lithium battery lab research and pilot scale production line.

Modle

Lithium ion Battery Coating Machine TMAX-DYG-135

Source voltage

AC 220V/110V, 50HZ

Power

6500W

Warranty

One Year limited warranty with lifetime support

 Max electrode width

300mm

Coating speed

1m/min, adjustable

  Coating accuracy

 ≤±0.003mm

Roller diameter

Φ100mm

  Max coating roller diameter

Φ250mm

Control pressure

5-50N, adjustable

Dry temperature

RT-150, adjustable

Oven length

1.2m

Air compression

0.5-0.7MPa

Coating mode

Single face continuous coating

Application foil

Aluminum foil, Copper foil

Weight

About 1050kg

Dimension(L*W*H)

1800*810*1300mm





Advantage

1 Scraping system, parts processing precision, slurry contact part stainless steel structure, scraping thickness adjustable.

2 Main transmission adopts frequency control of motor speed, wide speed range speed constant and reliable for the speed control system, constant torque

3 Drying box adopts far infrared heating pipe, high heat efficiency, long service life

4 Using hot air circulation system, can make the temperature uniform,not easy to burn the pole piece

5 Temperature control adopts PID control system, high control accuracy, reliable work

6 The reeling adopts automatic correction system, pole piece coiling system

coating laminating machine






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.




1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
