Large U type sticking film machine

  • Model Number:

    TMAX-A-009
  • Compliance:

    CE Certified
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Delivery Time:

    15 days
contact now
DESCRIPTION

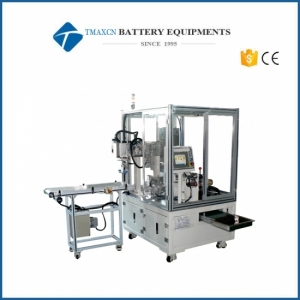

Large U type sticking film machine

Functions
 This equipment is suitable for the flexible packaging lithium batteries PP surface protective film.

Features
 Servo fixed-length puller, floating roller automatic tensioning.
 Drawstring to bring in and out, step by step control of roller coated.
 Vertical gas rose axis roll type feeding.
 PLC control, touch screen to adjust parameters.

Technical Parameters(for reference)

ITEM

HBDCS200(single station)

TMQ200(double stations)

Measure

1960*1000*2000mm(L*W*H)

2100*1950*2000mm(L*W*H)

Weight

About 0.8T

About 1.2T

Power

AC220V/50HZ, 2.5KW

AC220V/50HZ, 3KW

Air source

0.6Mpa,40L/Min

0.6Mpa,40L/Min

Vacuum source

-0.095Mpa,80L/Min

-0.095Mpa,80L/Min

Applicable range

H:50-200mm*W:60-200mm*T:2.5-10mm

H:50-200mm*W:60-200mm*T:2.5-10mm

Capacity

10EA/Min

20EA/Min

Action

99%

99%

U type sticking film machine






1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.




1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
