Large Vacuum Heat Sealing Machine For Polymer Battery

  • Model Number:

    TMAX-VSEC
  • Compliance:

    CE compliant
  • Warranty:

    Two years limited warranty with lifetime technical support
  • Delivery Time:

    15 days
contact now
DESCRIPTION

Large Vacuum Heat Sealing Machine For Polymer Battery


1.This machine is used for lithium polymer battery final vacuum sealing and edge cutting.

2.Three station rotary cam drive, with self-locking function.

3.The turntable, the corrosion resistant materials.

4.Can preset temperature, extraction time and sealing time.

5.Upper and lower head independent temperature control, with low and high temperature alarm function.

6.Head cylinder air pressure adjustable display.

7.With output statistics function, with manual, automatic running function, fault alarm function.

8.Adopt programmable controller PLC to realize automatic control, touch screen man-machine conversation, convenient operation and setting.

Model

TMAX-VSEC

Source voltage

AC 380V, 50HZ

Power

3000W

Air compression

0.6-0.7MPa, 10L/S

Vacuum degree

≤-0.095MPa

Size (L*W*H)

 1500*1200*1700mm

Weight

About 1.2T

Inner chamber size

L≤350mm, W≤300mm, Battery thickness: 3-12mm

Sealing head length

≤330mm

Sealing stamp width

7mm (customized)

Sealing thickness

0.1-0.35mm

Sealing temperature

RT-260 adjustable, Accuracy ±3°

Sealing time

0-10s, adjustable

Vacuum sealing time

0-99.99s,adjustable

Depth of parallelism

for sealing head

±0.01mm

Cutting knife

≤300mm

Depth of parallelism

For Cutting knife

0.05mm

Knife life

≥500 000 times

Output

180-300EA/H

Machine Configure

Standard part

PLC

Mitsubishi

Man-machine interface

Mitsubishi

Tem controller

Omron

Relay

Shanghai

Vacuum gauge

SMC

Motor

DDK

Cylinder, Electromagnetic valve, Pneumatic element

AIRTAC/SMC

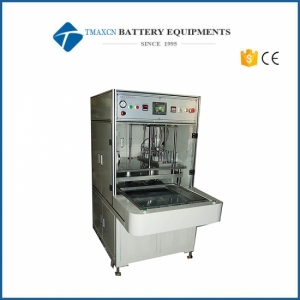

Vacuum Heat Sealing Machine





1.  We supply machines with battery technology support.

2.  We supply full set of lithium battery equipment for lab research, pilot scale research and production line.




1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damage part for you for free.
